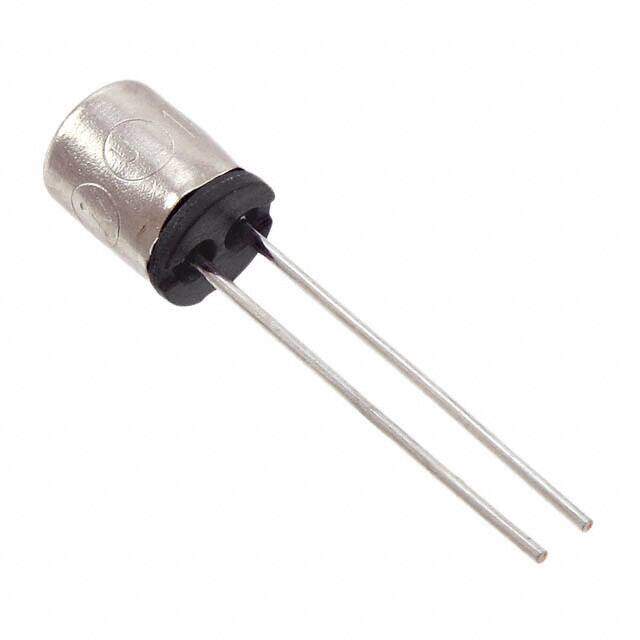

30311600131
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 1.6A 125VAC 63VDC
PDF
/
Inventory: 3097
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can, Vertical
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2014
Series TR3? 303
Size / Dimension 0.236Dia x 0.315 H 6.00mmx8.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Radial
Resistance 52mOhm
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Voltage - Rated DC 63V
Current Rating (Amps) 1.6A
Current Rating 1.6A
Voltage - Rated AC 125V
Approval Agency CSA, UL
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.11
DC Cold Resistance 0.052Ohms
Dimensions
Height 8.001mm
Compliance
RoHS Status ROHS3 Compliant
