23014000021P
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description

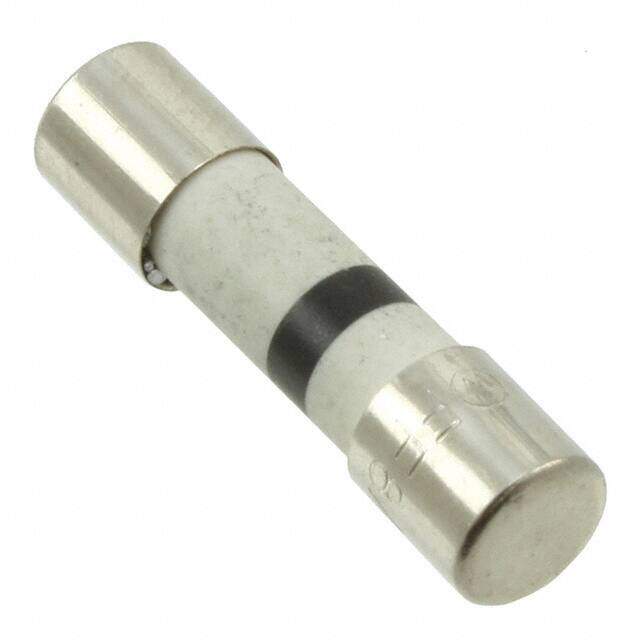

Cartridge Fuses 250V 4A FA 5X20MM
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.775127
≥1 USD $3.775127
≥10 USD $3.561445
≥100 USD $3.359852
≥500 USD $3.169668
≥1000 USD $2.990258
Inventory: 4342
Minimum: 1
-
+
Technical Details
Physical
Mount Holder
Mounting Type Holder
Package / Case 5mm x 20mm
Housing Material Ceramic
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2006
Series 230
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Axial
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Current Rating (Amps) 4A
Current Rating 4A
Voltage - Rated AC 250V
Current 4A
Response Time Fast Blow
Fuse Type Cartridge, Ceramic
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 1.6
Dimensions
Length 20mm
Compliance
RoHS Status ROHS3 Compliant
