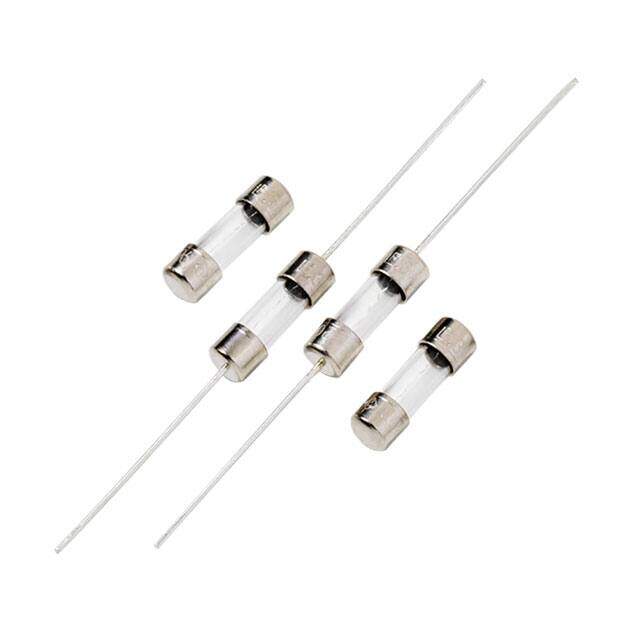

2206003.MXP
RoHS
RoHS compliant
RoHS compliantPackage 2AG, 5mm x 15mm (Axial)
Category Circuit Protection / Fuses
Description
Cartridge Fuses 300V 3A 2AG PT Fast Acting
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.27911
≥1 USD $1.27911
≥10 USD $1.206704
≥100 USD $1.138404
≥500 USD $1.07397
≥1000 USD $1.013177
Inventory: 1163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 2AG, 5mm x 15mm (Axial)
Terminal Shape PIN WIRE
Housing Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 2206
Size / Dimension 0.185Diax0.570L 4.70mmx14.48mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Axial
Resistance 31.7mOhm
Terminal Finish Tin (Sn)
Reach Compliance Code unknown
Current Rating 3A
Reference Standard CSA; UL
Voltage - Rated AC 300V
Approval Agency CE, CSA, UL
Response Time Fast Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 100A
Melting I2t 4.62
DC Cold Resistance 0.0317Ohm
Circuit Protection Type Electric Fuse
Fuse Size 2AG
Trip Time or Delay 14400 s
Fuse Class Supplemental
Dimensions
Diameter 4.7mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
