20111000021P
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description

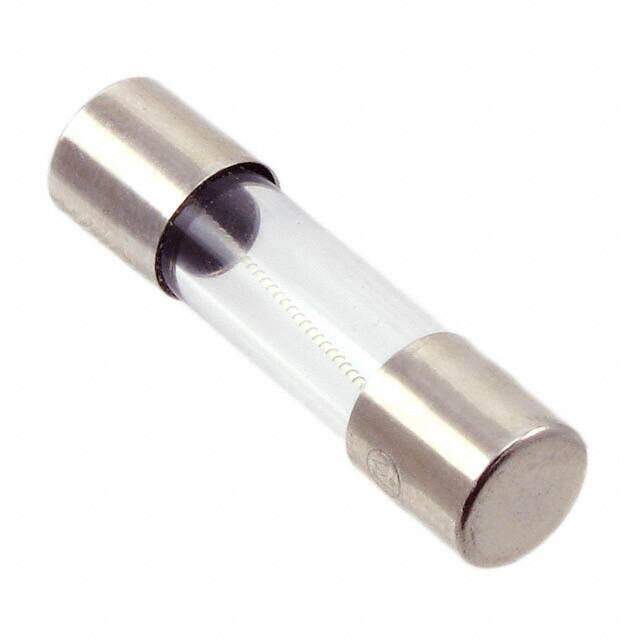

Cartridge Fuses 250V 1A DIN M/TL 5X20MM
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.992165
≥1 USD $1.992165
≥10 USD $1.879398
≥100 USD $1.773022
≥500 USD $1.672658
≥1000 USD $1.577977
Inventory: 1096
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Holder, Through Hole
Mounting Type Holder
Package / Case 5mm x 20mm
Terminal Shape END CAP
Housing Material Glass
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2006
Series 201P
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Clip
ECCN Code EAR99
Additional Feature PRE-ARCING TIME: OPEN WITHIN 5 MS AT 1000% RATED CURRENT
Current Rating 1A
Reference Standard CUL; UL
Voltage - Rated AC 250V
Approval Agency cULus
Current 1A
Power Dissipation 700mW
Response Time Medium Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 80A
Melting I2t 2
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic MEDIUM TIME LAG
Joule Integral-Nom 2 J
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
