20101600021
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description

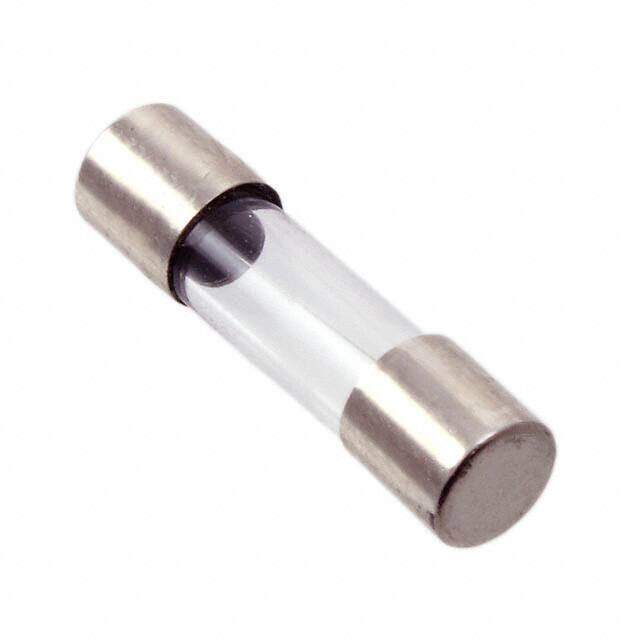

Cartridge Fuses Glass Body 160mA
PDF
/
Inventory: 3625
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 20mm
Technical
Blow Characteristic MEDIUM TIME LAG
Circuit Protection Type ELECTRIC FUSE
Melting I2t 0.085
Breaking Capacity @ Rated Voltage 80A
Fuse Type Cartridge, Glass
Response Time Medium Blow
Current 160mA
Physical Dimension 5.2mm x 20mm
Body Length or Diameter 5.2mm
Approval Agency cULus
Voltage - Rated AC 250V
Reference Standard CUL; UL
Current Rating 160mA
Reach Compliance Code unknown
Additional Feature PRE-ARCING TIME: OPEN WITHIN 5 MS AT 1000% RATED CURRENT
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series 201
Published 2006
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Shape END CAP
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
Supply Chain
Factory Lead Time 15 Weeks
