19811600001
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description

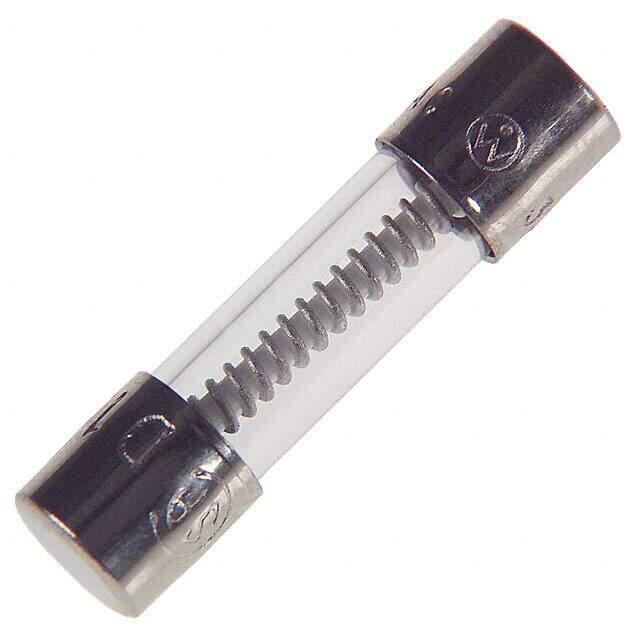

FUSE GLASS 1.6A 250VAC 5X20MM
PDF
/
Inventory: 7378
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 19.9898mm
Technical
Melting I2t 25
Breaking Capacity @ Rated Voltage 100A
Fuse Type Cartridge, Glass
Response Time Slow Blow
Approval Agency CSA, UL
Voltage - Rated AC 250V
Current Rating 1.6A
Current Rating (Amps) 1.6A
Voltage - Rated DC 250V
Voltage - Rated 250V
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Termination Clip
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series 198
Published 1999
Packaging Bulk
Physical
Body Material Glass
Package / Case 5mm x 20mm
Mounting Type Holder
Mount Holder
