168.6785.4507
RoHS
RoHS compliant
RoHS compliantPackage Blade, Miniature
Category Circuit Protection / Fuses
Description

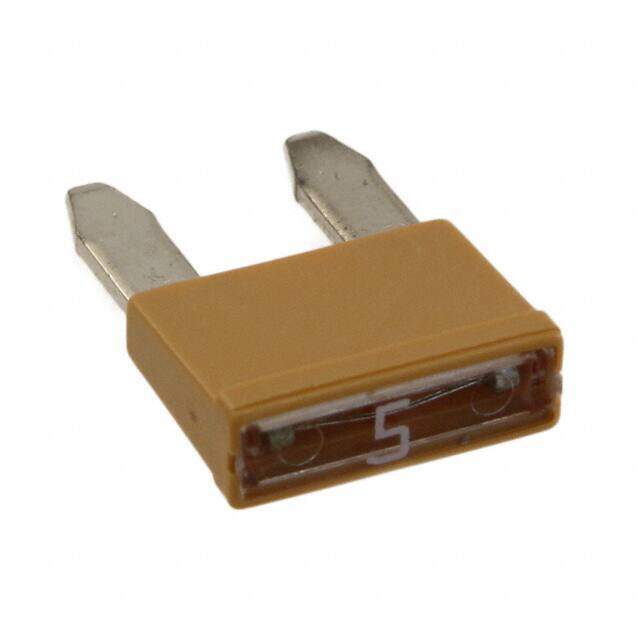

LITTELFUSE 168.6785.4507 Automotive Fuse, 5 A, Fast Acting, 32 V, 11.9mm x 3.8mm x 16.2mm
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.702831
≥1 USD $1.702831
≥200 USD $0.680082
≥500 USD $0.657763
≥1000 USD $0.645947
Inventory: 1967
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 8.6106mm
Technical
Fuse Current 5A
Joule Integral-Nom 19 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0162Ohm
Melting I2t 19.8
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Fast Blow
Physical Dimension 11.9mm x 3.8mm x 8.6mm
Body Length or Diameter 11.9mm
Approval Agency cULus
Voltage - Rated AC 32V
Reference Standard UL
Current Rating 5A
Depth 3.8mm
Voltage - Rated DC 32V
Color Tan
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish TIN
Resistance 16.2mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
JESD-609 Code e3
Size / Dimension 0.469Lx0.150W x 0.339 H 11.90mmx3.80mmx8.60mm
Series MINI? FK1
Packaging Bulk
Physical
Housing Material Thermoplastic
Terminal Shape TAB/BLADE
Package / Case Blade, Miniature
Mounting Type Holder
Mount Holder, Socket
