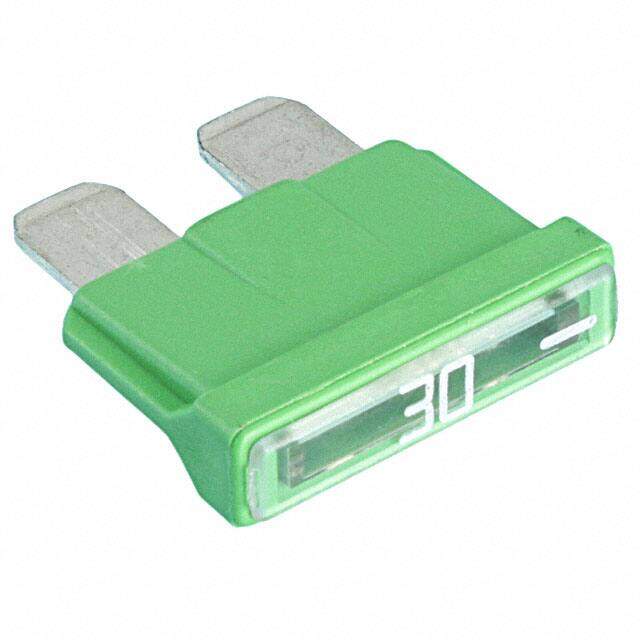

162.6185.4206
RoHS
RoHS compliant
RoHS compliantPackage Blade, ATO/ATC
Category Circuit Protection / Fuses
Description
Automotive Fuses 32VDC 1000A 2A FKS ISO 8820
PDF
/
Inventory: 9916
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Holder, Socket
Mounting Type Holder
Package / Case Blade, ATO/ATC
Terminal Shape TAB/BLADE
Technical
Packaging Bulk
Series FKS ATO?
Size / Dimension 0.748Lx0.197W x 0.520 H 19.00mmx5.00mmx13.20mm
JESD-609 Code e3
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 47.2mOhm
Terminal Finish TIN
Color Gray
Voltage - Rated DC 32V
Depth 5mm
Reach Compliance Code unknown
Current Rating 2A
Reference Standard UL
Approval Agency cULus
Body Length or Diameter 19mm
Physical Dimension 19mm x 5mm x 13.2mm
Response Time Fast Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 8
DC Cold Resistance 0.0472Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 8 J
Dimensions
Height 13.208mm
Compliance
RoHS Status ROHS3 Compliant
