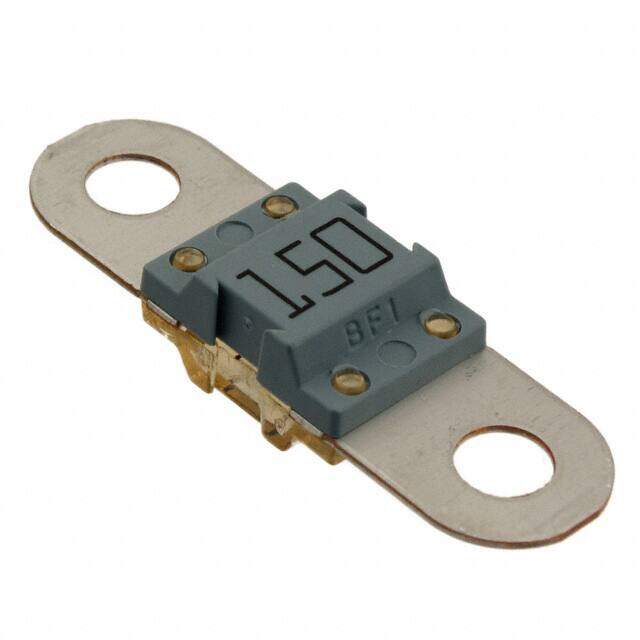

153.5631.6151
RoHS
RoHS compliant
RoHS compliantPackage Auto Link
Category Circuit Protection / Fuses
Description
FUSE AUTO 150A 32VDC AUTO LINK
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.5552
≥1 USD $3.5552
≥10 USD $3.42848
≥100 USD $3.30616
≥500 USD $2.57136
≥1000 USD $2.142712
≥3000 USD $2.081517
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7.8mm
Technical
Joule Integral-Nom 83400 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.00029Ohm
Melting I2t 83400
Breaking Capacity @ Rated Voltage 2kA
Fuse Type Automotive
Response Time Slow Blow
Operating Temperature (Min) -40°C
Physical Dimension 16mm x 12mm x 8mm
Operating Temperature (Max) 125°C
Body Length or Diameter 16mm
Approval Agency ISO, UL
Voltage - Rated AC 32V
Reference Standard UL
Current Rating 150A
Reach Compliance Code unknown
Depth 12mm
Voltage - Rated DC 32V
Color Gray
Terminal Finish Tin (Sn)
Resistance 290μOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.630Lx0.472W x 0.323 H 16.00mmx12.00mmx8.20mm
Series BF1
Packaging Bulk
Physical
Body Material Thermoplastic
Terminal Shape TAB/BLADE
Package / Case Auto Link
Mounting Type Bolt Mount
Mount Bolt
Supply Chain
Factory Lead Time 8 Weeks
