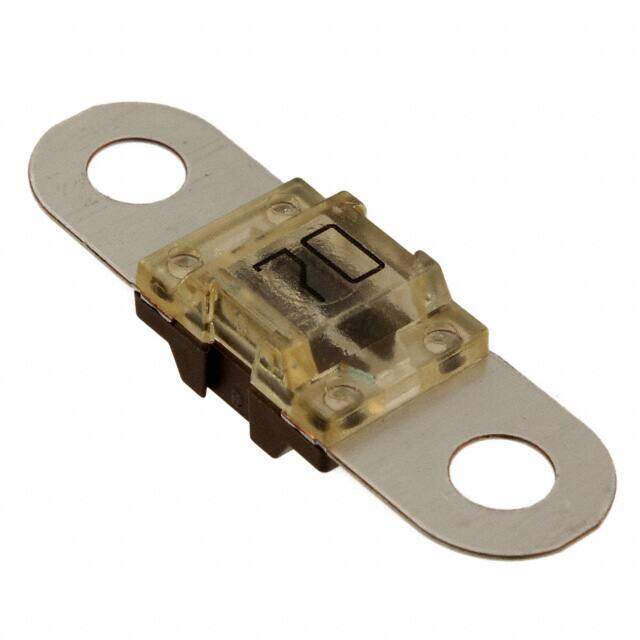

153.5631.5701
RoHS
RoHS compliant
RoHS compliantPackage Auto Link
Category Circuit Protection / Fuses
Description
FUSE AUTO 70A 32VDC AUTO LINK
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.038934
≥1 USD $2.038934
≥200 USD $0.789053
≥500 USD $0.761482
≥1000 USD $0.748353
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Bolt
Mounting Type Bolt Mount
Package / Case Auto Link
Terminal Shape TAB/BLADE
Body Material Thermoplastic
Technical
Packaging Bulk
Series BF1
Size / Dimension 0.630Lx0.472W x 0.323 H 16.00mmx12.00mmx8.20mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn)
Color Tan
Voltage - Rated DC 32V
Current Rating 70A
Reference Standard UL
Voltage - Rated AC 32V
Approval Agency ISO, UL
Body Length or Diameter 16mm
Operating Temperature (Max) 125°C
Body Breadth 12 mm
Physical Dimension 16mm x 12mm x 8mm
Operating Temperature (Min) -40°C
Response Time Slow Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 2kA
Melting I2t 22000
DC Cold Resistance 0.00064Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 22000 J
Dimensions
Height 8mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
