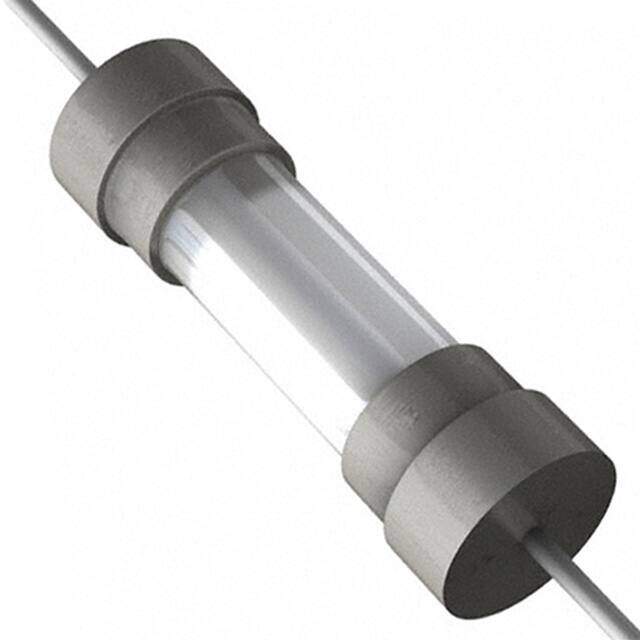

0977.800MXEP image
Favorite
0977.800MXEP image
Favorite

0977.800MXEP

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package 5mm x 20mm (Axial)
Category Circuit Protection / Fuses
Description FUSE CERAMIC 800MA 500VAC 450VDC
PDF
/
Buying Options
Total Price: USD $10.5
Unit Price: USD $10.4984
≥1 USD $10.4984
≥10 USD $10.12
≥100 USD $9.746
≥500 USD $7.496896
≥1000 USD $6.372344
≥3000 USD $5.997482
Inventory: 1070
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Body Height 22.5mm

Technical

Fuse Current 800mA
Fuse Size 5x20mm
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.417Ohm
Melting I2t 0.8
Breaking Capacity @ Rated Voltage 100A AC 200A DC
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Physical Dimension 6mm x 22.5mm
Body Length or Diameter 6mm
Approval Agency CE, SEMKO
Voltage - Rated AC 500V
Reference Standard CE; SEMKO
Current Rating 800mA
Voltage - Rated DC 450V
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 417mOhm
ECCN Code EAR99
Termination Axial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Size / Dimension 0.236Diax0.886L 6.00mmx22.50mm
Series 977
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Ceramic
Terminal Shape PIN WIRE
Package / Case 5mm x 20mm (Axial)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 15 Weeks
