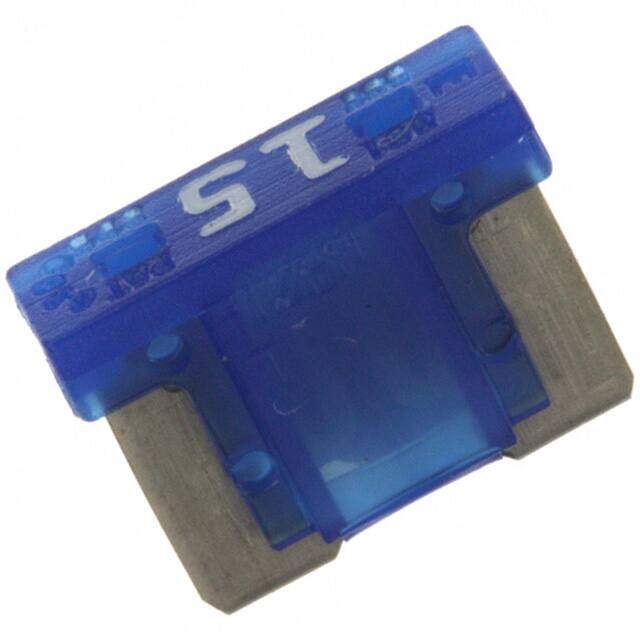

0891015.NXT
RoHS
RoHS compliant
RoHS compliantPackage Blade, Miniature (Low Profile)
Category Circuit Protection / Fuses
Description
FUSE AUTO 15A 58VDC BLADE MINI
PDF
/
Inventory: 6885
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Holder, Socket
Mounting Type Holder
Package / Case Blade, Miniature (Low Profile)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series LP MINI? 891
Size / Dimension 0.429Lx0.150W x 0.299 H 10.90mmx3.80mmx7.60mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 4.7mOhm
Color Blue
Voltage - Rated DC 58V
Depth 3.8mm
Reach Compliance Code unknown
Current Rating 15A
Response Time Fast Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 198
DC Cold Resistance 0.0047Ohm
Circuit Protection Type ELECTRIC FUSE
Dimensions
Height 7.6mm
Compliance
RoHS Status ROHS3 Compliant
