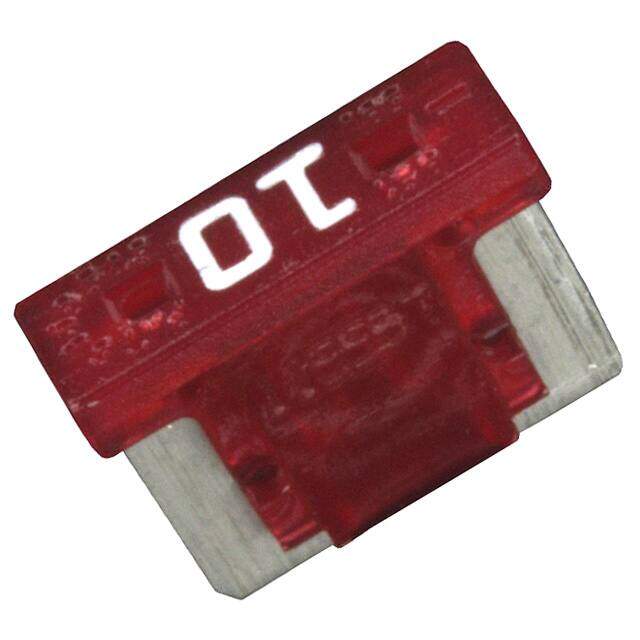

0891010.NXT
RoHS
RoHS compliant
RoHS compliantPackage Blade, Miniature (Low Profile)
Category Circuit Protection / Fuses
Description
FUSE AUTO 10A 58VDC BLADE MINI
PDF
/
Inventory: 5591
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7.6mm
Technical
Joule Integral-Nom 102 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.00759Ohm
Melting I2t 102
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Fast Blow
Physical Dimension 10.9mm x 3.8mm x 7.6mm
Body Breadth 3.8 mm
Body Length or Diameter 10.9mm
Current Rating 10A
Reach Compliance Code unknown
Voltage - Rated DC 58V
Additional Feature PRE ARCING TIME: OPEN WITHIN 0.03 SEC AT 600% RATED CURRENT
Color Red
Resistance 7.59mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.429Lx0.150W x 0.299 H 10.90mmx3.80mmx7.60mm
Series LP MINI? 891
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Terminal Shape TAB/BLADE
Surface Mount NO
Package / Case Blade, Miniature (Low Profile)
Mounting Type Holder
