0877002.MXEP
RoHS
RoHS compliant
RoHS compliantPackage Cartridge, Non-Standard (Axial)
Category Circuit Protection / Fuses
Description

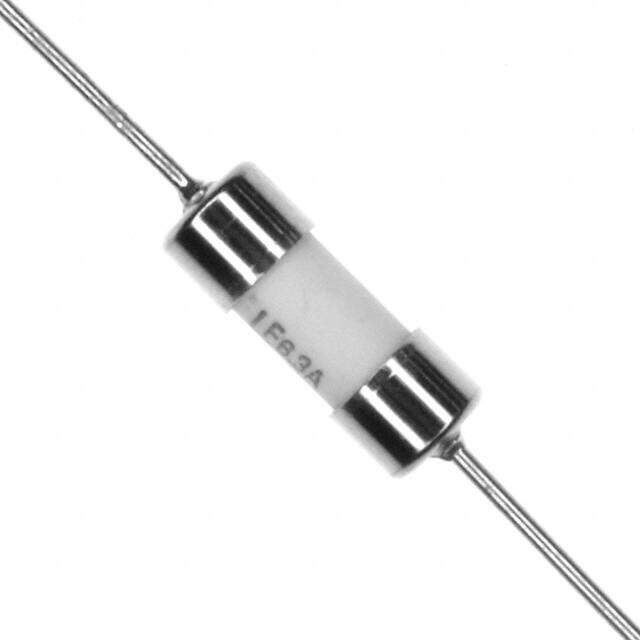

FUSE CERAMIC 2A 250VAC AXIAL
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.3552
≥100 USD $1.28656
≥500 USD $1.038576
≥1000 USD $0.880528
≥3000 USD $0.858
Inventory: 198
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Body Height 10mm
Technical
Fuse Current 2A
Joule Integral-Nom 24 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.035Ohm
Melting I2t 24.6
Breaking Capacity @ Rated Voltage 35A
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Power Dissipation 450mW
Physical Dimension 3.6mm x 10mm
Body Length or Diameter 3.6mm
Approval Agency cULus, VDE
Voltage - Rated AC 250V
Reference Standard IEC; UL; VDE
Current Rating 2A
Voltage - Rated DC 250V
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 35mOhm
ECCN Code EAR99
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.142Diax0.394L 3.60mmx10.00mm
Series 877
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Ceramic
Number of Pins 2
Terminal Shape PIN WIRE
Package / Case Cartridge, Non-Standard (Axial)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
