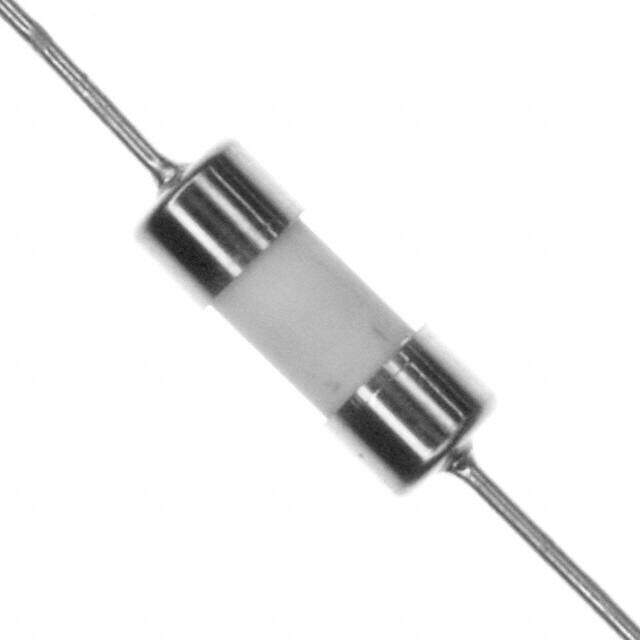

0875.200MXEP
RoHS
RoHS compliant
RoHS compliantPackage Cartridge, Non-Standard (Axial)
Category Circuit Protection / Fuses
Description
FUSE CERAMIC 200MA 250VAC AXIAL
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.0416
≥1 USD $2.0416
≥10 USD $1.9712
≥100 USD $1.90344
≥500 USD $1.495472
≥1000 USD $1.22364
≥3000 USD $1.1968
Inventory: 989
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 10mm
Technical
Pre-arcing Rating 0.016 A2/s
Trip Time or Delay 14400 s
Fuse Current 200mA
Outside Diameter 3.6 mm
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.92Ohm
Melting I2t 0.0165
Breaking Capacity @ Rated Voltage 50A
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Physical Dimension 3.6mm x 10mm
Approval Agency cULus
Voltage - Rated AC 250V
Reference Standard CSA; UL
Current Rating 200mA
Voltage - Rated DC 250V
HTS Code 8536.10.00.40
Resistance 920mOhm
ECCN Code EAR99
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.142Diax0.394L 3.60mmx10.00mm
Series 875
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Body Material Ceramic
Terminal Shape PIN WIRE
Package / Case Cartridge, Non-Standard (Axial)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
