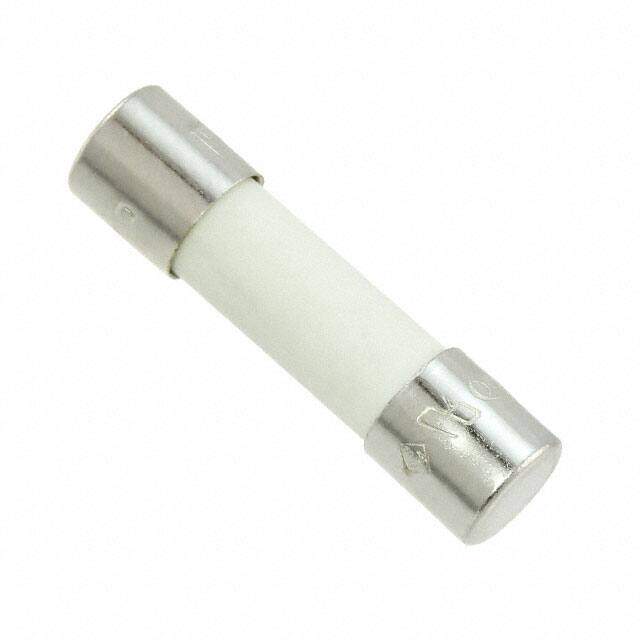

0835005.MXP
RoHS
RoHS compliant
RoHS compliantPackage Cartridge, Non-Standard
Category Circuit Protection / Fuses
Description
FUSE 250V 5X20 HIGHER I2T 5A
PDF
/
Buying Options
Total Price: USD $2.12
Unit Price: USD $2.1208
≥1 USD $2.1208
≥10 USD $2.02048
≥100 USD $1.91928
≥500 USD $1.548624
≥1000 USD $1.31296
≥3000 USD $1.279309
Inventory: 556
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Holder
Package / Case Cartridge, Non-Standard
Terminal Shape END CAP
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 835
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 15.5mOhm
Terminal Finish Nickel (Ni)
Reach Compliance Code unknown
Current Rating 5A
Reference Standard CCC, PSE, TUV, UL
Voltage - Rated AC 250V
Approval Agency CCC, cURus, KC, PSE, TUV
Body Length or Diameter 5.2mm
Physical Dimension 5.2mm x 20mm
Response Time Slow Blow
Fuse Type Cartridge, Ceramic
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 155
DC Cold Resistance 0.0155Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Fuse Size 5x20mm
Dimensions
Body Height 20mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
