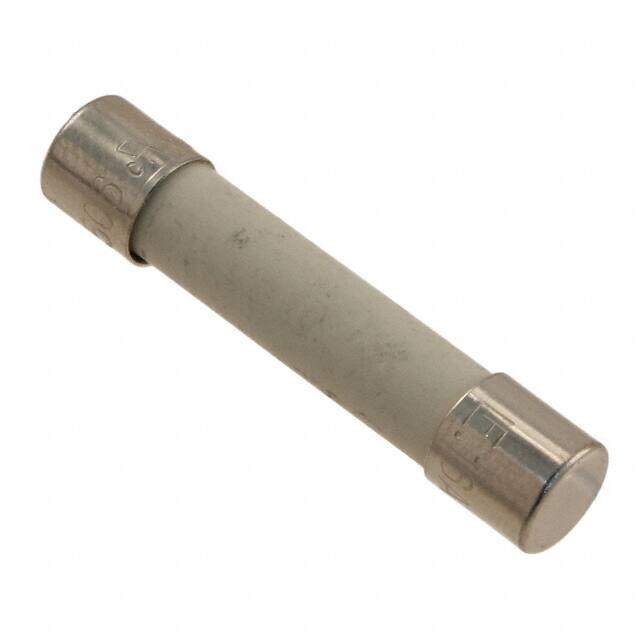

0506016.MXP image
Favorite
0506016.MXP image
Favorite

0506016.MXP

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description FUSE CERAMIC 16A 600VDC 3AB 3AG
PDF
/
Buying Options
Total Price: USD $4.09
Unit Price: USD $4.092
≥1 USD $4.092
≥10 USD $3.94768
≥100 USD $3.80688
≥500 USD $2.960496
≥1000 USD $2.48204
Inventory: 991
Minimum: 1
-
+

Technical Details

Technical

Trip Time or Delay 3600 s
Fuse Current 16A
Fuse Size 3AB
Circuit Protection Type Electric Fuse
DC Cold Resistance 0.008Ohm
Melting I2t 61
Breaking Capacity @ Rated Voltage 10kA
Fuse Type Cartridge, Ceramic
Response Time Fast Blow
Physical Dimension 6.35mm x 31.75mm
Body Length or Diameter 6.35mm
Approval Agency CE, cURus
Voltage - Rated AC 600V
Reference Standard UL
Current Rating 16A
Voltage - Rated DC 600V
Resistance 8mOhm
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.252Diax1.250L 6.40mmx31.75mm
Series 506
Packaging Bulk
Operating Temperature -55°C~125°C

Dimensions

Body Height 31.75mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant

Physical

Body Material Ceramic
Terminal Shape END CAP
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Mounting Type Holder

Supply Chain

Factory Lead Time 11 Weeks
