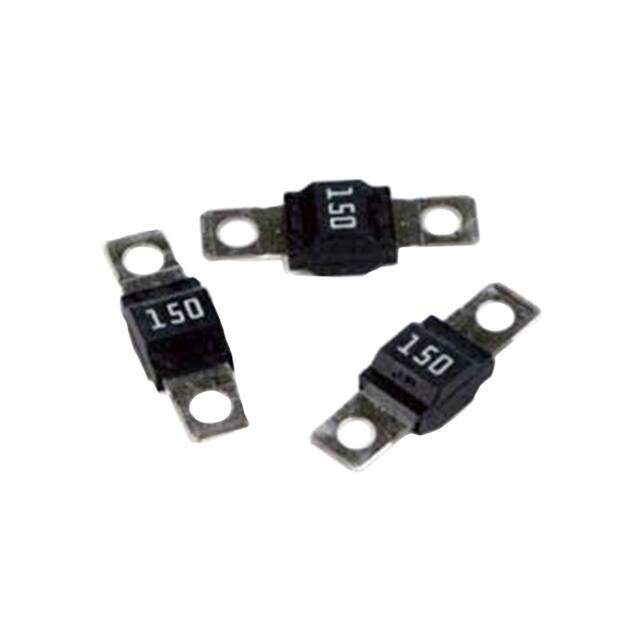

0498070.TXN
RoHS
RoHS compliant
RoHS compliantPackage Auto Link
Category Circuit Protection / Fuses
Description
FUSE AUTO 70A 32VDC AUTO LINK
PDF
/
Buying Options
Total Price: USD $5.18
Unit Price: USD $5.1832
≥1 USD $5.1832
≥10 USD $5.0072
≥100 USD $4.82768
≥500 USD $3.755136
≥1000 USD $3.129368
≥3000 USD $3.039907
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Bolt
Mounting Type Bolt Mount
Package / Case Auto Link
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series MIDI? 498
Size / Dimension 1.614Lx0.472W x 0.315 H 41.00mmx12.00mmx8.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Resistance 720μOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Brown
Voltage - Rated DC 32V
Current Rating (Amps) 70A
Current Rating 70A
Response Time Slow Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 24000
DC Cold Resistance 0.00072Ohms
Dimensions
Height 8.001mm
Length 40.9956mm
Width 11.9888mm
Compliance
RoHS Status ROHS3 Compliant
