0477004.MXEP
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm (Axial)
Category Circuit Protection / Fuses
Description

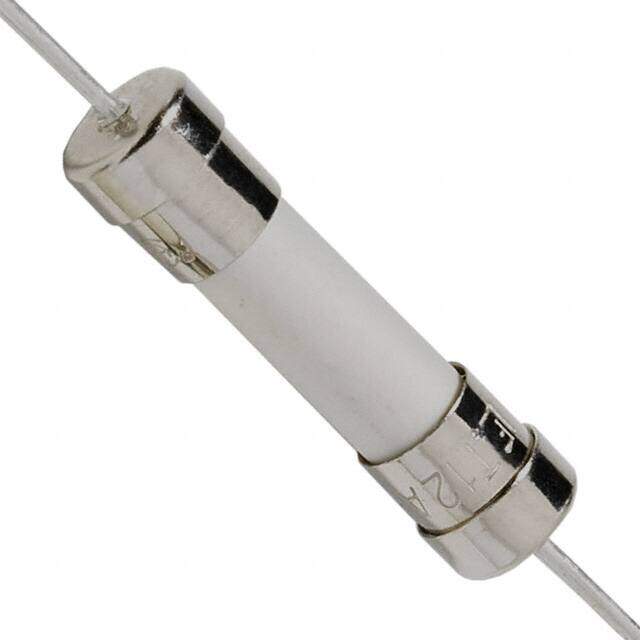

Fuse Miniature Slow Blow Acting 4A 500V Axial 5 X 20mm Ceramic Bulk
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
≥10 USD $2.00464
≥100 USD $1.90432
≥500 USD $1.537008
≥1000 USD $1.303104
≥3000 USD $1.269699
Inventory: 1466
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Joule Integral-Nom 52 J
Blow Characteristic TIME DELAY
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0172Ohm
Melting I2t 52.48
Breaking Capacity @ Rated Voltage 100A AC 500A DC
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Current 4A
Working Voltage 500V
Body Length or Diameter 5.8mm
Approval Agency cULus, PSE, SEMKO
Voltage - Rated AC 500V
Reference Standard PSE; SEMKO; UL
Current Rating 4A
Voltage - Rated DC 400V
HTS Code 8536.10.00.40
Resistance 17.2mOhm
ECCN Code EAR99
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.228Diax0.886L 5.80mmx22.50mm
Series 477
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Ceramic
Number of Pins 2
Terminal Shape PIN WIRE
Package / Case 5mm x 20mm (Axial)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 15 Weeks
