0473003.VXL
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Circuit Protection / Fuses
Description

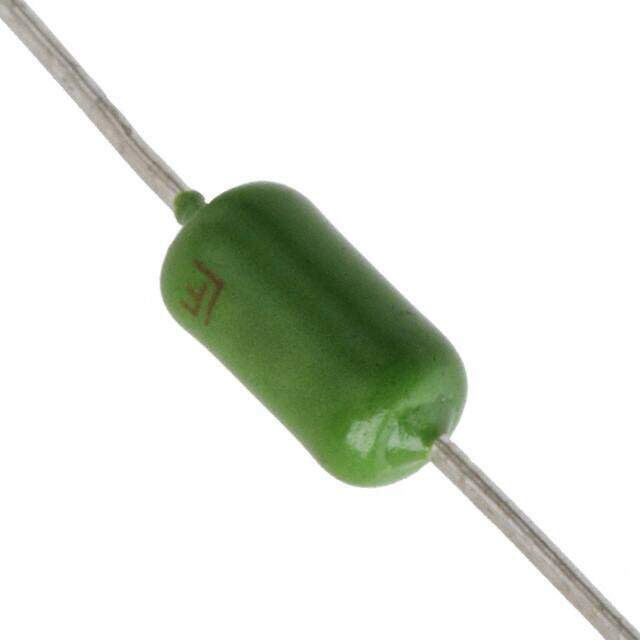

Fuses with Leads (Through Hole) 125V 3A PICO II Slo-Blo
PDF
/
Buying Options
Total Price: USD $22.89
Unit Price: USD $22.89435
≥1 USD $22.89435
≥200 USD $9.135158
≥500 USD $8.830565
≥1000 USD $8.679582
Inventory: 3124
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 7.112mm
Technical
DC Cold Resistance 0.038Ohms
Melting I2t 21
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Approval Agency CSA, PSE, UR
Voltage - Rated AC 125V
Current Rating 3A
Current Rating (Amps) 3A
Voltage - Rated DC 125V
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 38mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.135Diax0.280L 3.43mmx7.11mm
Series PICO? II 473
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
