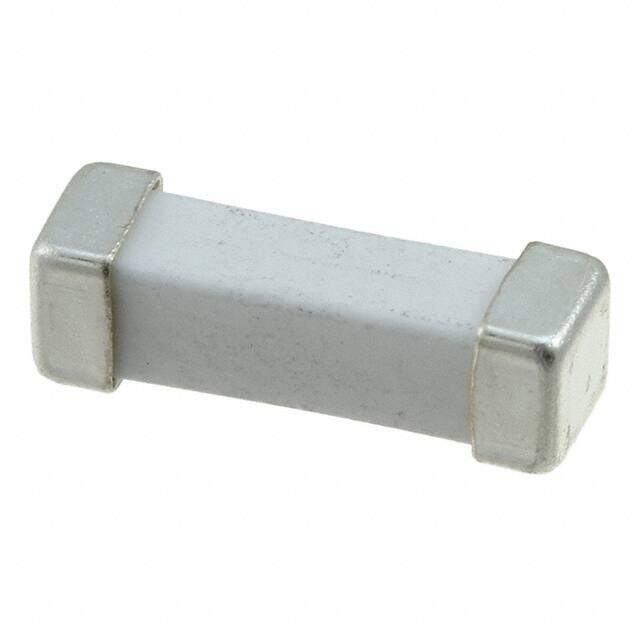

0463025.ER
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Square End Block
Category Circuit Protection / Fuses
Description
FUSE V/FAST 250V NANO2 25A
PDF
/
Buying Options
Total Price: USD $4.73
Unit Price: USD $4.7344
≥1 USD $4.7344
≥10 USD $4.56896
≥100 USD $4.40528
≥500 USD $3.426368
≥1000 USD $2.855336
≥3000 USD $2.77376
Inventory: 7413
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-SMD, Square End Block
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series 463
Size / Dimension 0.398Lx0.123W x 0.123 H 10.10mmx3.12mmx3.12mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 2.15mOhm
Additional Feature INTERRUPTING CURRENT-MAX(DC): 50 A, PRE ARCING TIME: OPEN WITHIN 60 SEC AT 200% RATED CURRENT
Voltage - Rated DC 100V
Packing Method TR
Current Rating 25A
Reference Standard CUL; UL
Voltage - Rated AC 250V
Approval Agency cURus
Body Length or Diameter 10.1mm
Body Breadth 3.05 mm
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 100A AC 50A DC
Melting I2t 668
DC Cold Resistance 0.00215Ohm
Circuit Protection Type ELECTRIC FUSE
Fuse Size NANO
Joule Integral-Nom 668 J
Dimensions
Height 3.1242mm
Compliance
RoHS Status ROHS3 Compliant
