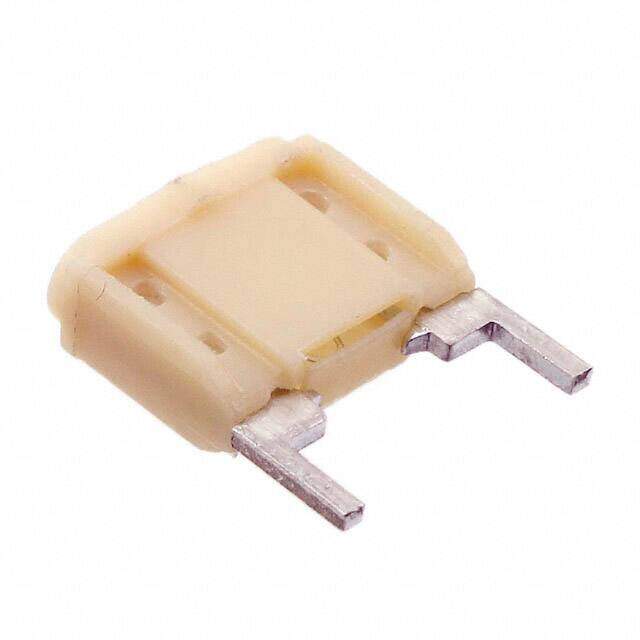

0447002.YP
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 2A 350VAC 125VDC
PDF
/
Inventory: 1391
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 3.81mm
Length 10.922mm
Height 10.2616mm
Technical
DC Cold Resistance 0.056Ohms
Melting I2t 2.8
Breaking Capacity @ Rated Voltage 100A AC 50A DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Approval Agency CSA, METI, UL
Voltage - Rated AC 350V
Current Rating 2A
Current Rating (Amps) 2A
Voltage - Rated DC 125V
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 56mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.430Lx0.150W x 0.404 H 10.92mmx3.81mmx10.26mm
Series 447
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Package / Case Radial, Box
Mounting Type Through Hole
Mount Through Hole
