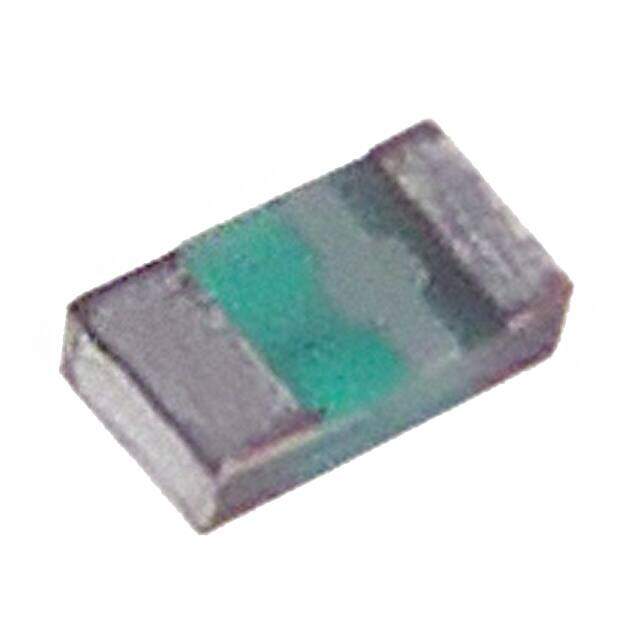

0435002.KR
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Circuit Protection / Fuses
Description
FUSE BOARD MOUNT 2A 32VDC 0402
PDF
/
Buying Options
Total Price: USD $1.08
Unit Price: USD $1.0824
≥1 USD $1.0824
≥10 USD $1.04896
≥100 USD $0.98208
≥500 USD $0.812416
≥1000 USD $0.676984
≥3000 USD $0.66007
Inventory: 16140
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 330.2μm
Technical
Fuse Current 2A
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.03Ohm
Melting I2t 0.1
Breaking Capacity @ Rated Voltage 35A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Power Dissipation 141.2mW
Working Voltage 32V
Physical Dimension 0.99mm x 0.51mm x 0.3mm
Body Breadth 0.51 mm
Case Code (Imperial) 0402
Body Length or Diameter 0.99mm
Approval Agency CSA, UL
Case Code (Metric) 1005
Voltage - Rated AC 32V
Reference Standard CSE; UL
Current Rating 2A
Depth 560μm
Packing Method TAPE AND REEL
Voltage - Rated DC 32V
HTS Code 8536.10.00.40
Composition Thin Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 30mOhm
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.039Lx0.020W x 0.013 H 0.99mmx0.51mmx0.33mm
Series 435
Packaging Tape & Reel (TR)
Operating Temperature -55°C~90°C
Physical
Body Material Glass
Terminal Shape WRAPAROUND
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
