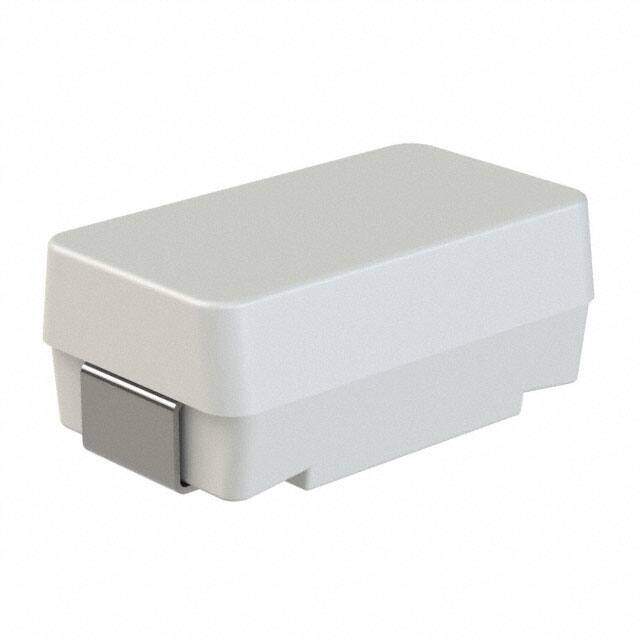

04200007UR
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Circuit Protection / Fuses
Description
FUSE BOARD MOUNT 4A 250VAC 2SMD
PDF
/
Inventory: 9701
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.32mm
Length 7.24mm
Height 3.05mm
Technical
DC Cold Resistance 0.0194Ohms
Melting I2t 35
Breaking Capacity @ Rated Voltage 35A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Approval Agency CSA, UL
Voltage - Rated AC 250V
Current Rating 4A
Current Rating (Amps) 4A
Resistance 19.4mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PICO? 420
Published 2006
Packaging Tape & Reel (TR)
Physical
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
