0388006.MXEP
RoHS
RoHS compliant
RoHS compliantPackage 3AB, 3AG, 1/4 x 1-1/4 (Axial)
Category Circuit Protection / Fuses
Description

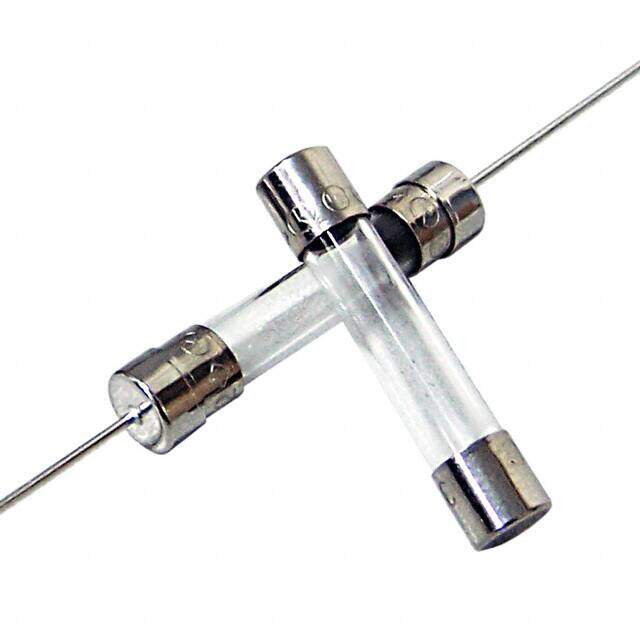

FUSE GLASS 6A 250VAC 3AB 3AG
PDF
/
Inventory: 8289
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 32.72mm
Technical
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.014Ohm
Melting I2t 116
Breaking Capacity @ Rated Voltage 100A
Fuse Type Cartridge, Glass
Response Time Fast Blow
Physical Dimension 6.99mm x 32.72mm
Body Length or Diameter 6.99mm
Approval Agency CE, K-MARK, PSE
Voltage - Rated AC 250V
Reference Standard CE; KTL; PSE
Current Rating 6A
Reach Compliance Code unknown
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 14mOhm
ECCN Code EAR99
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 0.275Diax1.288L 6.99mmx32.72mm
Series 388
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape PIN WIRE
Package / Case 3AB, 3AG, 1/4 x 1-1/4 (Axial)
Mounting Type Through Hole
Mount Through Hole
