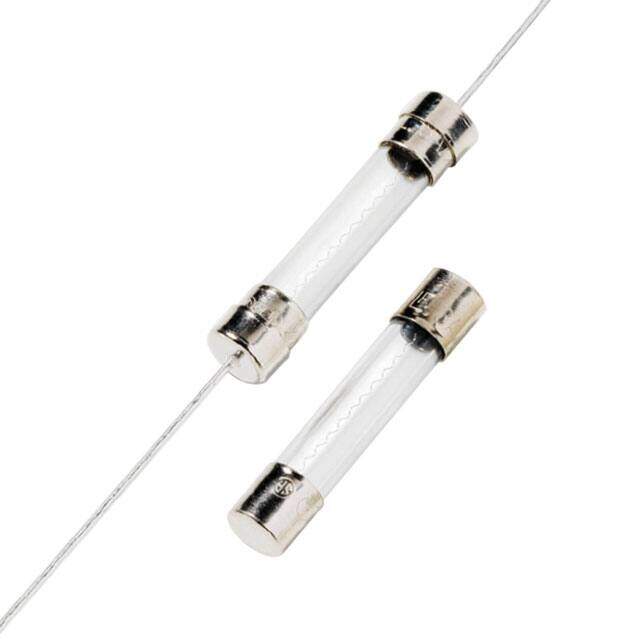

0318008.VXP
RoHS
RoHS compliant
RoHS compliantPackage 3AB, 3AG, 1/4 x 1-1/4 (Axial)
Category Circuit Protection / Fuses
Description
Fuse Miniature 8A 250V Fast 2-Pin Axial Through Hole Bulk
PDF
/
Inventory: 9348
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Joule Integral-Nom 166 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0122Ohm
Melting I2t 166
Breaking Capacity @ Rated Voltage 200A
Fuse Type Cartridge, Glass
Response Time Fast Blow
Body Length or Diameter 6.99mm
Approval Agency CE, CSA, KC, PSE, UL
Voltage - Rated AC 250V
Reference Standard CE; CSA; KTL; PSE; UL
Current Rating 8A
Reach Compliance Code unknown
HTS Code 8536.10.00.40
Terminal Finish Matte Tin (Sn)
Resistance 12.2mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.275Diax1.288L 6.99mmx32.72mm
Series 318
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Number of Pins 2
Terminal Shape PIN WIRE
Package / Case 3AB, 3AG, 1/4 x 1-1/4 (Axial)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
