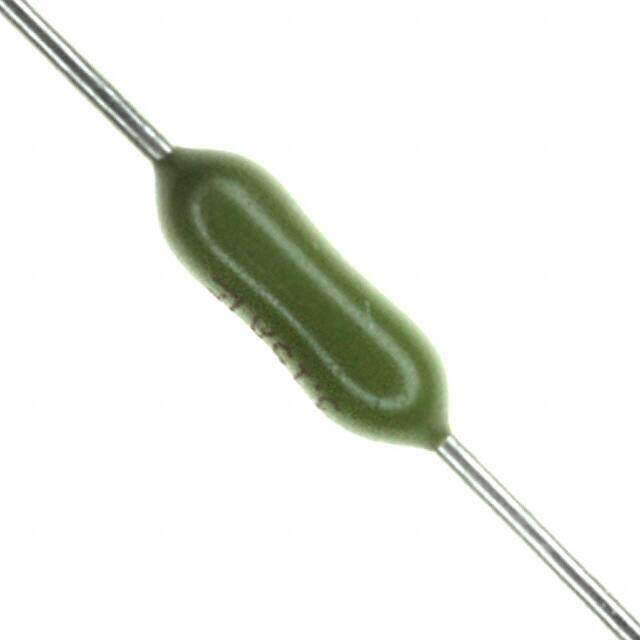

03163.15NRT1
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 3.15A 125VAC/VDC
PDF
/
Inventory: 8846
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 7.11mm
Technical
Fuse Class Supplemental
Trip Time or Delay 14400 s
Fuse Current 3.15A
Joule Integral-Nom 1 J
Blow Characteristic VERY FAST
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.029Ohm
Melting I2t 1.19
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 2.8mm x 7.11mm
Body Length or Diameter 2.8mm
Approval Agency CCC
Voltage - Rated AC 125V
Reference Standard CCC
Current Rating 3.15A
Reach Compliance Code unknown
Packing Method TAPE AND REEL
Voltage - Rated DC 125V
HTS Code 8536.10.00.40
Terminal Finish TIN
Resistance 29mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 0.110Diax0.280L 2.80mmx7.11mm
Series PICO? II 316
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Terminal Shape PIN WIRE
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
