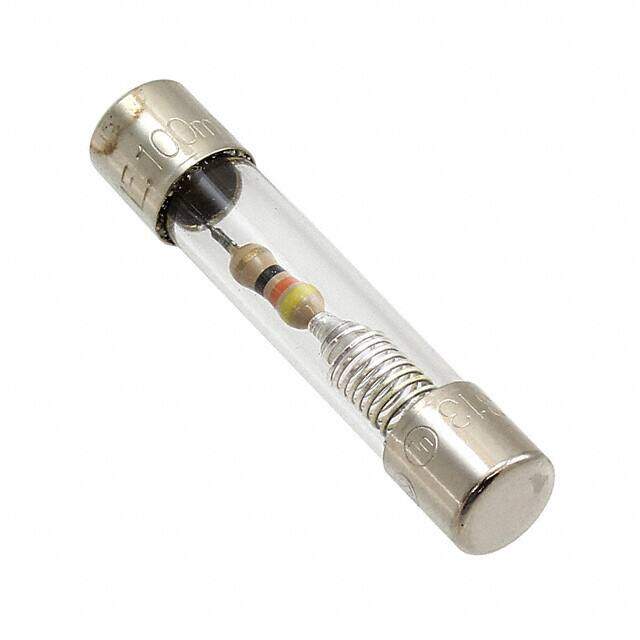

0313.040HXP
RoHS
RoHS compliant
RoHS compliantPackage 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description
FUSE GLASS 40MA 250VAC 3AB 3AG
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.0304
≥1 USD $4.0304
≥10 USD $3.8896
≥100 USD $3.75056
≥500 USD $2.9172
≥1000 USD $2.431
≥3000 USD $2.361542
Inventory: 109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Holder
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Surface Mount NO
Terminal Shape END CAP
Housing Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 313
Size / Dimension 0.250Diax1.250L 6.35mmx31.75mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Clip
ECCN Code EAR99
Resistance 220Ohm
Terminal Finish Matte Tin (Sn)
Voltage - Rated DC 250V
Current Rating 40mA
Reference Standard CE; CSA; UL
Voltage - Rated AC 250V
Approval Agency CE, CSA, UL
Physical Dimension 6.35mm x 31.75mm
Working Voltage 250V
Power Dissipation 250mW
Response Time Slow Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.00603
DC Cold Resistance 300Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Fuse Current 40mA
Dimensions
Diameter 6.35mm
Body Height 31.75mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
