0299080.ZXT
RoHS
RoHS compliant
RoHS compliantPackage Blade, Max
Category Circuit Protection / Fuses
Description
FUSE AUTO 80A 32VDC BLADE
PDF
/
Buying Options
Total Price: USD $9.24
Unit Price: USD $9.24019
≥1 USD $9.24019
≥200 USD $3.57634
≥500 USD $3.450301
≥1200 USD $3.388595
Inventory: 6324
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Holder
Package / Case Blade, Max
Terminal Shape TAB/BLADE
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series MAXI?

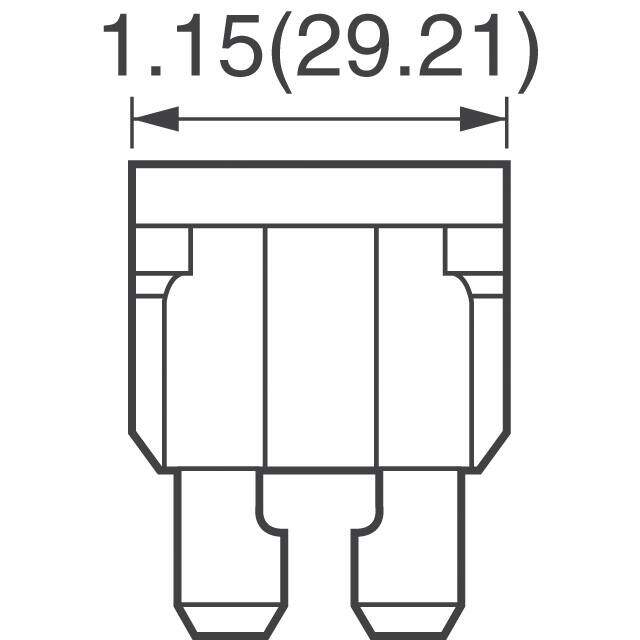

Size / Dimension 1.150Lx0.350W x 0.850 H 29.21mmx8.89mmx21.59mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Resistance 540mOhm
Terminal Finish Silver (Ag)
Color White
Voltage - Rated DC 32V
Current Rating 80A
Reference Standard UL
Approval Agency UR
Body Length or Diameter 29.21mm
Body Breadth 8.85 mm
Physical Dimension 29.21mm x 8.85mm x 21.59mm
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 8800
DC Cold Resistance 0.54Ohm
Circuit Protection Type ELECTRIC FUSE
Trip Time or Delay 360000 s
Pre-arcing Rating 43600 A2/s
Dimensions
Height 21.59mm
Compliance
RoHS Status ROHS3 Compliant
