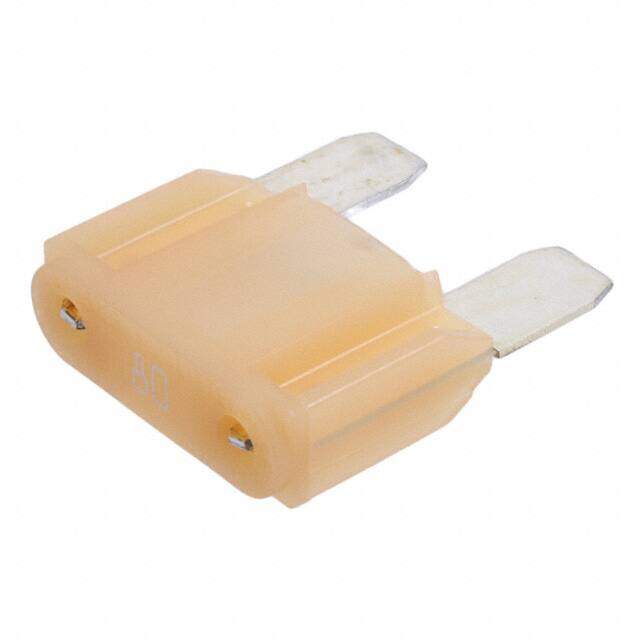

0299080.L
RoHS
RoHS compliant
RoHS compliantPackage Blade, Max
Category Circuit Protection / Fuses
Description
FUSE AUTO 80A 32VDC BLADE
PDF
/
Buying Options
Total Price: USD $21.69
Unit Price: USD $21.693047
≥1 USD $21.693047
≥200 USD $8.395996
≥500 USD $8.100593
≥1000 USD $7.954861
Inventory: 1168
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Holder
Package / Case Blade, Max
Terminal Shape TAB/BLADE
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series MAXI?
Size / Dimension 1.150Lx0.348W x 0.850 H 29.21mmx8.85mmx21.59mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Resistance 540μOhm
Terminal Finish Silver (Ag)
Color Clear
Voltage - Rated DC 32V
Reach Compliance Code unknown
Current Rating 80A
Reference Standard UL
Approval Agency DIN, ISO, SAE
Body Length or Diameter 29.21mm
Body Breadth 8.85 mm
Physical Dimension 29.21mm x 8.85mm x 21.59mm
Response Time Slow Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 8800
DC Cold Resistance 0.00054Ohm
Circuit Protection Type ELECTRIC FUSE
Trip Time or Delay 360000 s
Pre-arcing Rating 43600 A2/s
Dimensions
Height 21.59mm
Compliance
RoHS Status ROHS3 Compliant
