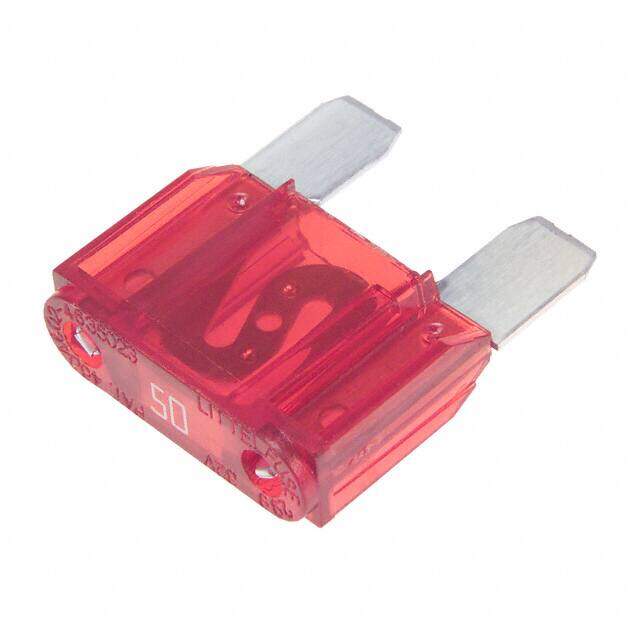

0299050.L
RoHS
RoHS compliant
RoHS compliantPackage Blade, Max
Category Circuit Protection / Fuses
Description
FUSE AUTO 50A 32VDC BLADE
PDF
/
Buying Options
Total Price: USD $2.69
Unit Price: USD $2.6928
≥1 USD $2.6928
≥10 USD $2.6048
≥100 USD $2.51592
≥500 USD $1.976656
≥1000 USD $1.617264
≥3000 USD $1.572384
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 21.59mm
Technical
Trip Time or Delay 360000 s
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0011Ohm
Melting I2t 11300
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Slow Blow
Physical Dimension 29.21mm x 8.85mm x 21.59mm
Body Breadth 8.85 mm
Body Length or Diameter 29.21mm
Approval Agency DIN, ISO, SAE
Reference Standard UL
Current Rating 50A
Reach Compliance Code unknown
Voltage - Rated DC 32V
Color Red
Terminal Finish Silver (Ag)
Resistance 1.1mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e4
Size / Dimension 1.150Lx0.348W x 0.850 H 29.21mmx8.85mmx21.59mm
Series MAXI?
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Terminal Shape TAB/BLADE
Package / Case Blade, Max
Mounting Type Holder
Supply Chain
Factory Lead Time 7 Weeks
