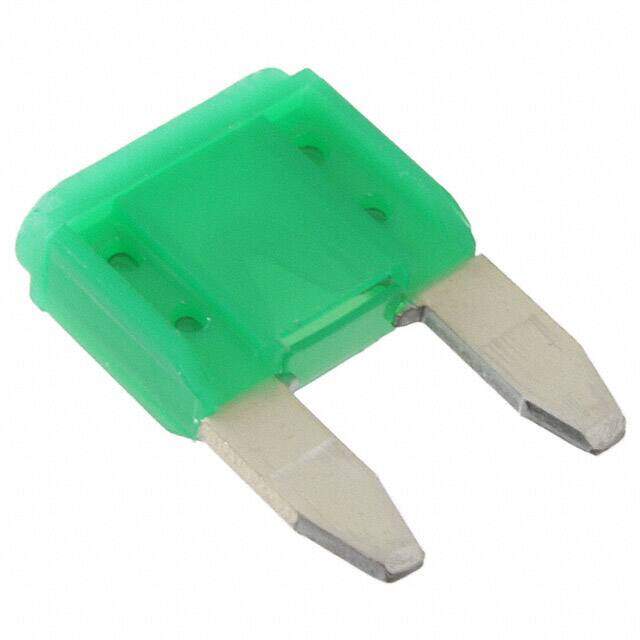

0297030.WXNV
RoHS
RoHS compliant
RoHS compliantPackage Blade, Miniature
Category Circuit Protection / Fuses
Description
FUSE AUTO 30A 32VDC BLADE MINI
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.26928
≥100 USD $0.25784
≥500 USD $0.229856
≥1000 USD $0.214016
≥3000 USD $0.190256
Inventory: 1234
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height 8.8mm
Technical
Trip Time or Delay 14400 s
Fuse Current 30A
Joule Integral-Nom 1130 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.00185Ohm
Melting I2t 1130
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Fast Blow
Working Voltage 32V
Physical Dimension 10.9mm x 3.8mm x 8.8mm
Body Length or Diameter 10.9mm
Voltage - Rated AC 32V
Reference Standard UL
Current Rating 30A
Depth 3.8mm
Voltage - Rated DC 32V
Color Green
Terminal Finish Silver (Ag)
Resistance 1.8mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.429Lx0.150W x 0.346 H 10.90mmx3.80mmx8.80mm
Series MINI? 297
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Number of Pins 2
Terminal Shape TAB/BLADE
Package / Case Blade, Miniature
Mounting Type Holder
Mount Holder, Socket
Supply Chain
Factory Lead Time 6 Weeks
