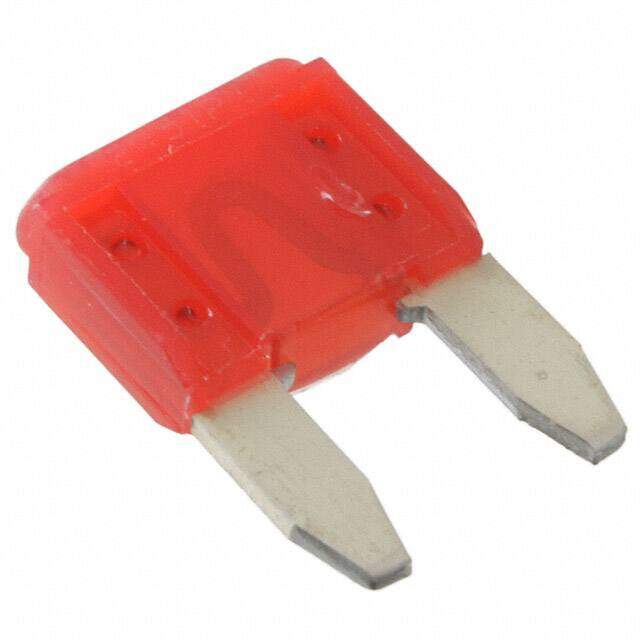

0297010.LXN
RoHS
RoHS compliant
RoHS compliantPackage Blade, Miniature
Category Circuit Protection / Fuses
Description
FUSE AUTO 10A 32VDC BLADE MINI
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.56586
≥1 USD $0.56586
≥200 USD $0.225819
≥500 USD $0.219254
≥1000 USD $0.215316
Inventory: 984
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 8.8mm
Technical
Trip Time or Delay 360000 s
Circuit Protection Type Electric Fuse
DC Cold Resistance 0.00742Ohm
Melting I2t 93
Rated Current 10A
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Fast Blow
Physical Dimension 10.9mm x 3.8mm x 8.8mm
Body Breadth 3.8 mm
Body Length or Diameter 10.9mm
Approval Agency UL, UR
Reference Standard UL
Reach Compliance Code unknown
Current Rating (Amps) 10A
Voltage - Rated DC 32V
Color Red
Terminal Finish Silver (Ag)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Size / Dimension 0.429Lx0.150W x 0.346 H 10.90mmx3.80mmx8.80mm
Series MINI? 297
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Terminal Shape TAB/BLADE
Package / Case Blade, Miniature
Mounting Type Holder
