0297005.U
RoHS
RoHS compliant
RoHS compliantPackage Blade, Miniature
Category Circuit Protection / Fuses
Description

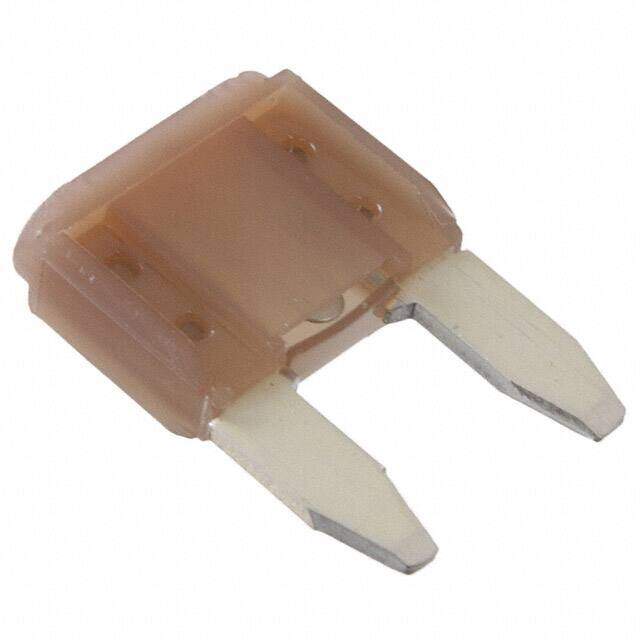

Fuse Blade Fast Acting 5A 32V Socket 10.9 X 3.8 X 8.8mm Polyamide 66
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.28688
≥100 USD $0.2772
≥500 USD $0.233376
≥1000 USD $0.193776
≥3000 USD $0.176176
Inventory: 813
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Holder
Package / Case Blade, Miniature
Terminal Shape TAB/BLADE
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series MINI? 297
Size / Dimension 0.429Lx0.150W x 0.346 H 10.90mmx3.80mmx8.80mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 17.75mOhm
Terminal Finish Silver (Ag)
Color Tan
Voltage - Rated DC 32V
Reach Compliance Code unknown
Current Rating 5A
Approval Agency SAE, UL
Body Length or Diameter 10.9mm
Body Breadth 3.8 mm
Physical Dimension 10.9mm x 3.8mm x 8.8mm
Response Time Fast Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 25
DC Cold Resistance 0.01775Ohm
Circuit Protection Type ELECTRIC FUSE
Trip Time or Delay 14400 s
Dimensions
Height 8.7884mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
