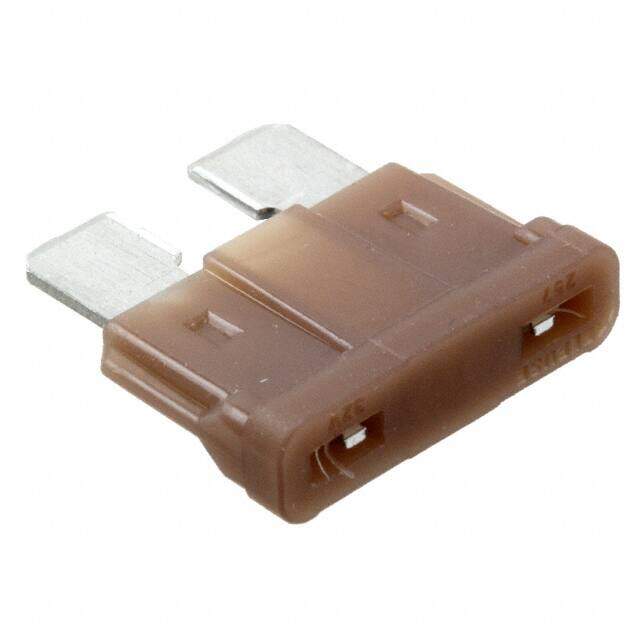

0287005.L image
Favorite
0287005.L image
Favorite

0287005.L

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package Blade, ATO/ATC
Category Circuit Protection / Fuses
Description Fuse Blade 5A 32V Socket 19.1 X 12.3 X 5.1mm Polyamide 66 Automotive
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.4576
≥100 USD $0.4444
≥500 USD $0.373472
≥1000 USD $0.310112
≥3000 USD $0.281882
Inventory: 743
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height 12.2936mm

Technical

Joule Integral-Nom 26 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 17.85Ohm
Melting I2t 26
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Body Length or Diameter 19.1mm
Approval Agency UL
Current Rating 5A
Depth 5.1mm
Voltage - Rated DC 32V
Additional Feature PRE ARCING TIME: OPEN WITHIN 80 MILLISEC AT 350% RATED CURRENT
Color Tan
Terminal Finish Tin (Sn)
Resistance 17.85mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Size / Dimension 0.752Lx0.201W x 0.484 H 19.10mmx5.10mmx12.30mm
Series ATOF?
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Polyamide
Number of Pins 2
Terminal Shape TAB/BLADE
Package / Case Blade, ATO/ATC
Mounting Type Holder
Mount Holder, Socket

Supply Chain

Factory Lead Time 7 Weeks
