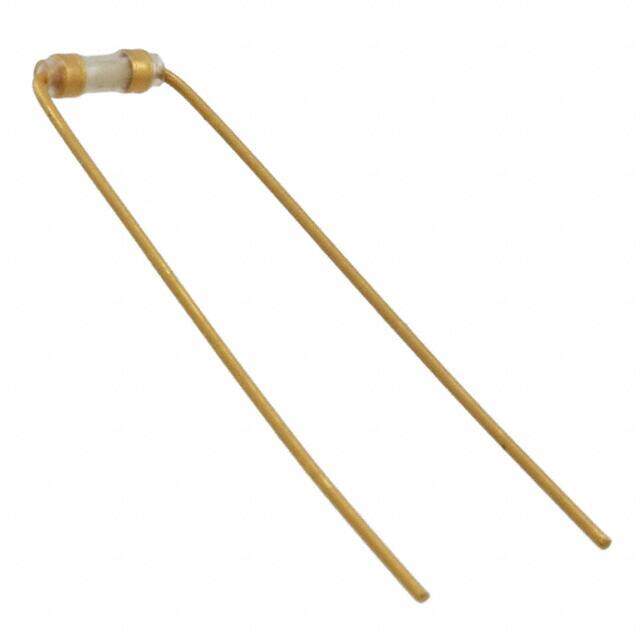

0266004.V
RoHS
RoHS compliant
RoHS compliantPackage Radial Bend Cylinder
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 4A 125VAC/VDC RAD
PDF
/
Buying Options
Total Price: USD $526.2
Unit Price: USD $526.195878
≥1 USD $526.195878
≥200 USD $203.63079
≥500 USD $196.475485
≥1000 USD $192.938532
Inventory: 5577
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 7.11mm
Technical
Fuse Class Supplemental
Blow Characteristic VERY FAST
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.023Ohm
Breaking Capacity @ Rated Voltage 50A AC 300A DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 2.36mm x 7.11mm
Body Length or Diameter 2.36mm
Approval Agency CSA, QPL, UL
Voltage - Rated AC 125V
Reference Standard CSA; QPL; UL
Current Rating 4A
Reach Compliance Code unknown
Voltage - Rated DC 125V
HTS Code 8536.10.00.40
Terminal Finish Gold (Au)
Resistance 23mOhm
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.093Diax0.280L 2.36mmx7.11mm
Series PICO? 266
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape PIN WIRE
Package / Case Radial Bend Cylinder
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
