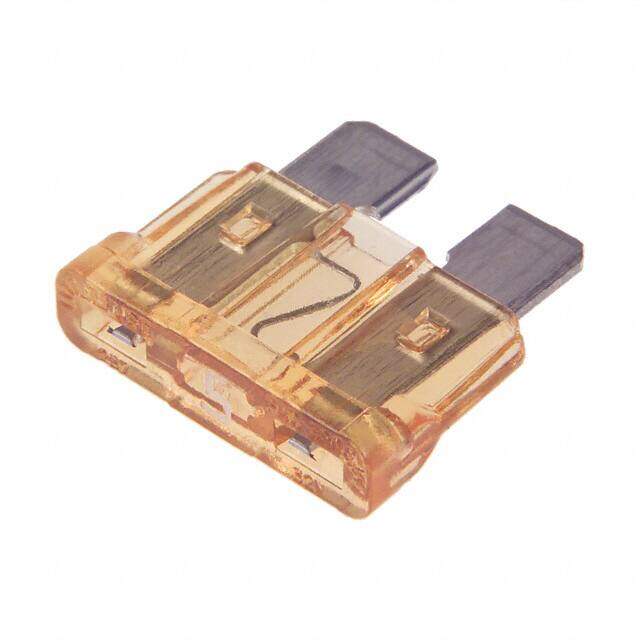

0257005.PXPV
RoHS
RoHS compliant
RoHS compliantPackage Blade, ATO/ATC
Category Circuit Protection / Fuses
Description
FUSE AUTO 5A 32VDC BLADE ATO/ATC
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
≥4000 USD $0.7163
Inventory: 1109
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 12.19mm
Technical
Fuse Class ATO
Trip Time or Delay 360000 s
Fuse Current 5A
Joule Integral-Nom 26 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.01785Ohm
Melting I2t 26
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Fast Blow
Working Voltage 32V
Physical Dimension 19.05mm x 5.08mm x 12.19mm
Body Length or Diameter 19.05mm
Voltage - Rated AC 32V
Reference Standard UL
Current Rating 5A
Depth 5.08mm
Voltage - Rated DC 32V
Color Tan
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 17.85mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Size / Dimension 0.750Lx0.200W x 0.480 H 19.05mmx5.08mmx12.19mm
Series ATO?
Packaging Bulk
Physical
Body Material Thermoplastic
Terminal Shape TAB/BLADE
Package / Case Blade, ATO/ATC
Mounting Type Holder
Mount Holder, Socket
