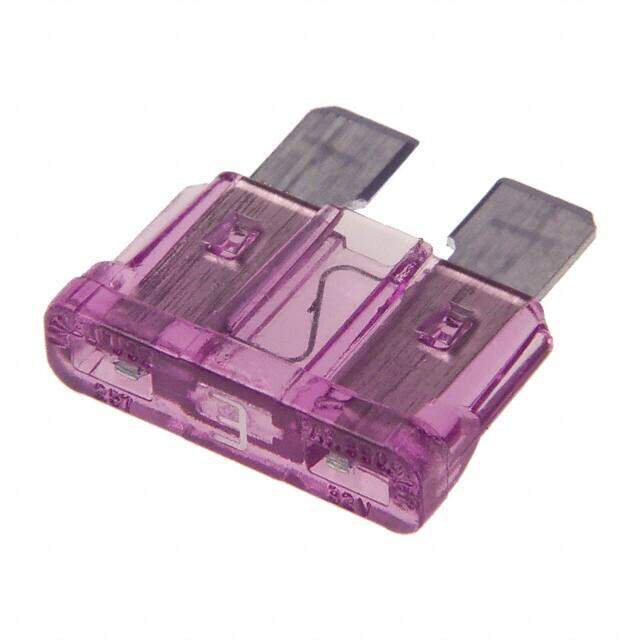

0257003.PXPV
RoHS
RoHS compliant
RoHS compliantPackage Blade, ATO/ATC
Category Circuit Protection / Fuses
Description
FUSE AUTO 3A 32VDC BLADE
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.064319
≥5 USD $0.064319
≥50 USD $0.052241
≥150 USD $0.046201
≥500 USD $0.041672
≥2000 USD $0.038048
≥4000 USD $0.036236
Inventory: 4899
Minimum: 5
-
+
Technical Details
Physical
Mount Holder, Socket
Mounting Type Holder
Package / Case Blade, ATO/ATC
Terminal Shape TAB/BLADE
Number of Pins 2
Technical
Packaging Bulk
Series ATO?
Size / Dimension 0.750Lx0.200W x 0.480 H 19.05mmx5.08mmx12.19mm
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 31mOhm
Terminal Finish Tin/Copper (Sn/Cu)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Violet
Voltage - Rated 32V
Voltage - Rated DC 32V
Depth 5.08mm
Current Rating 3A
Reference Standard UL
Body Length or Diameter 19.05mm
Working Voltage 32V
Response Time Fast Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 7.4
DC Cold Resistance 0.0311Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 7 J
Fuse Current 3A
Trip Time or Delay 360000 s
Fuse Class ATO
Dimensions
Height 12.19mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
