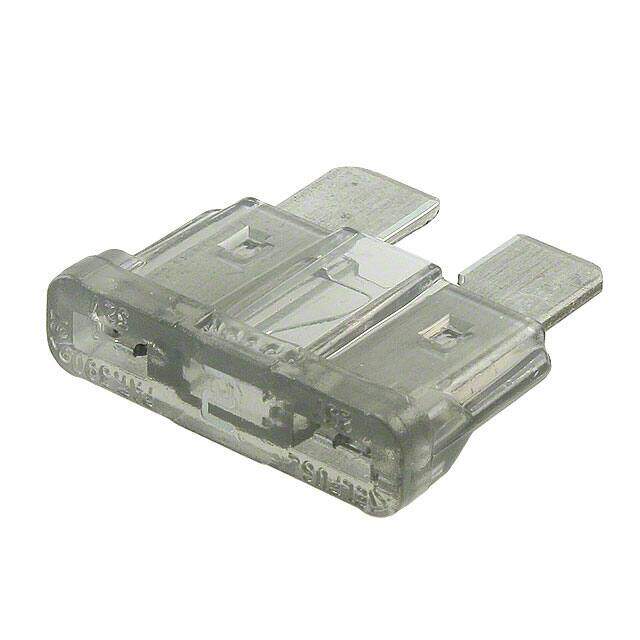

0257002.U
RoHS
RoHS compliant
RoHS compliantPackage Blade, ATO/ATC
Category Circuit Protection / Fuses
Description
FUSE AUTO 2A 32VDC BLADE 500 PC
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.422754
≥1 USD $0.422754
≥200 USD $0.169364
≥500 USD $0.1628
≥1000 USD $0.160174
Inventory: 8353
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Holder
Package / Case Blade, ATO/ATC
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series ATO?
Size / Dimension 0.750Lx0.200W x 0.480 H 19.05mmx5.08mmx12.19mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 53.5mOhm
Color Gray
Voltage - Rated DC 32V
Reach Compliance Code unknown
Current Rating 2A
Approval Agency cULus
Response Time Fast Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 1.4
DC Cold Resistance 0.0535Ohm
Circuit Protection Type ELECTRIC FUSE
Dimensions
Height 12.192mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
