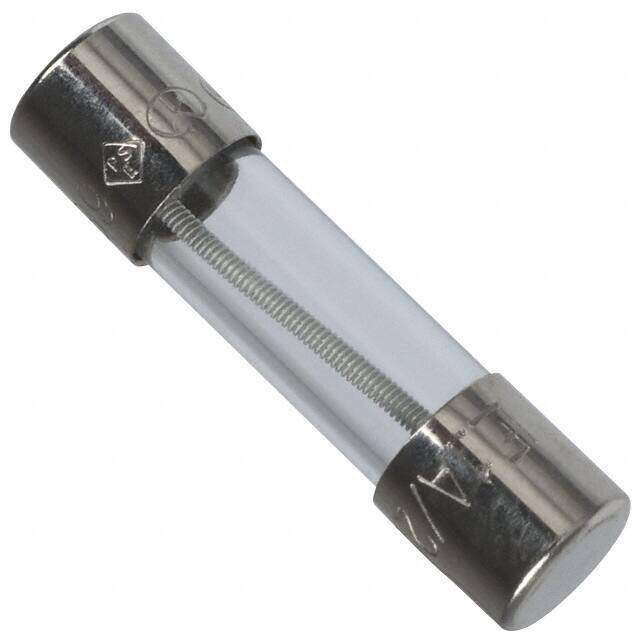

0239.500VXP
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description
FUSE GLASS 500MA 250VAC 5X20MM
PDF
/
Inventory: 9281
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 19.9898mm
Technical
DC Cold Resistance 0.909Ohms
Melting I2t 1.985
Breaking Capacity @ Rated Voltage 35A
Fuse Type Cartridge, Glass
Response Time Slow Blow
Approval Agency CE, CSA, KC, UL
Voltage - Rated AC 250V
Current Rating 500mA
Current Rating (Amps) 500mA
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 909mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series 239
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Package / Case 5mm x 20mm
Mounting Type Holder
Mount Holder
Supply Chain
Factory Lead Time 15 Weeks
Alternative Model
