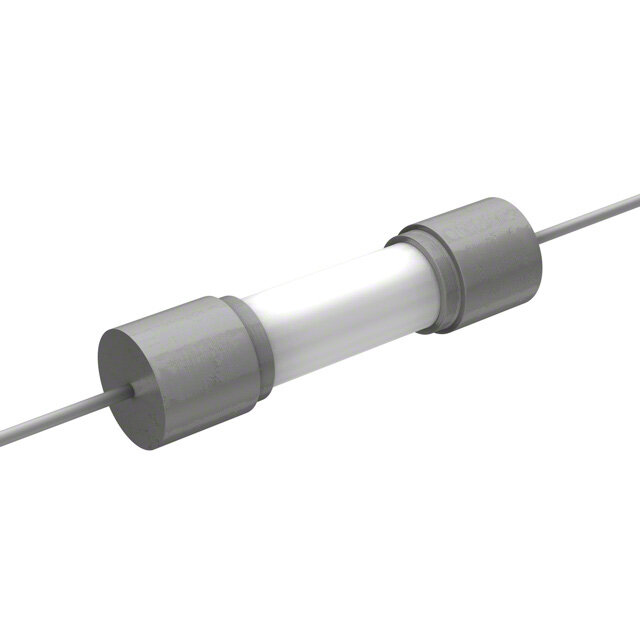

0234005.MXEP image
Favorite
0234005.MXEP image
Favorite

0234005.MXEP

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package 5mm x 20mm (Axial)
Category Circuit Protection / Fuses
Description FUSE CERAMIC 5A 250VAC 5X20MM
PDF
/
Inventory: 6597
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Body Height 21.5mm
Diameter 5.8mm

Technical

Trip Time or Delay 3600 s
Joule Integral-Nom 20 J
Fuse Size 5x20mm
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0214Ohm
Melting I2t 20.645
Breaking Capacity @ Rated Voltage 200A
Fuse Type Cartridge, Ceramic
Response Time Medium Blow
Physical Dimension 5.5mm x 21.5mm
Approval Agency CE, CSA, K-MARK, PSE, UL
Voltage - Rated AC 250V
Reference Standard CE; CSA; KTL; PSE; UL
Current Rating 5A
Voltage - Rated DC 250V
Additional Feature PRE ARCHING TIME: OPEN WITHIN 400 MS AT 200% RATED CURRENT
Terminal Finish Tin (Sn)
Resistance 21.4mOhm
ECCN Code EAR99
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.228Diax0.886L 5.80mmx22.50mm
Series 234
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Terminal Shape PIN WIRE
Package / Case 5mm x 20mm (Axial)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 15 Weeks
