023302.5MXP
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description

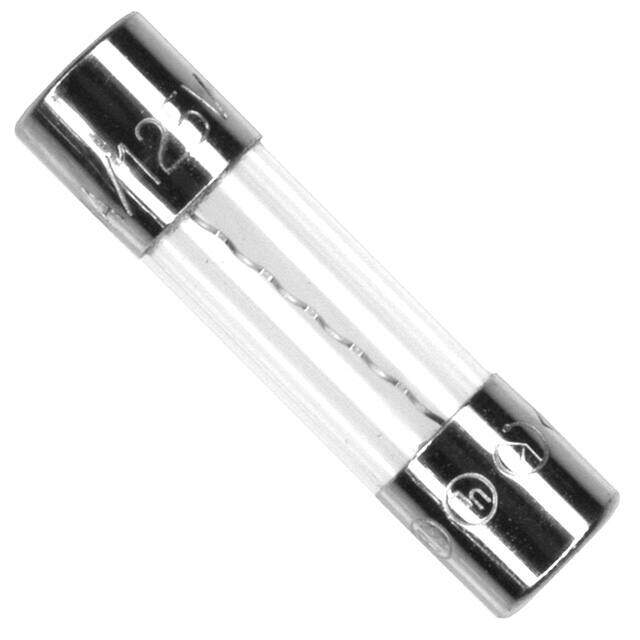

FUSE GLASS 2.5A 125VAC 5X20MM
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.85008
≥100 USD $0.79552
≥500 USD $0.65824
≥1000 USD $0.548592
≥3000 USD $0.534829
Inventory: 1119
Minimum: 1
-
+
Technical Details
Technical
Joule Integral-Nom 17 J
Outside Diameter 5.2 mm
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0521Ohm
Melting I2t 17.045
Breaking Capacity @ Rated Voltage 10kA
Fuse Type Cartridge, Glass
Response Time Medium Blow
Physical Dimension 5.2mm x 20mm
Approval Agency CE, CSA, KC, PSE, UL
Voltage - Rated AC 125V
Reference Standard CE; CSA; KC; PSE; UL
Current Rating 2.5A
Reach Compliance Code unknown
Voltage - Rated DC 125V
Terminal Finish Tin (Sn)
Resistance 52mOhm
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series 233
Packaging Bulk
Operating Temperature -55°C~125°C
Fuse Current 2.5A
Physical
Housing Material Glass
Terminal Shape END CAP
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
Supply Chain
Factory Lead Time 15 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 20mm
Diameter 5.2mm
