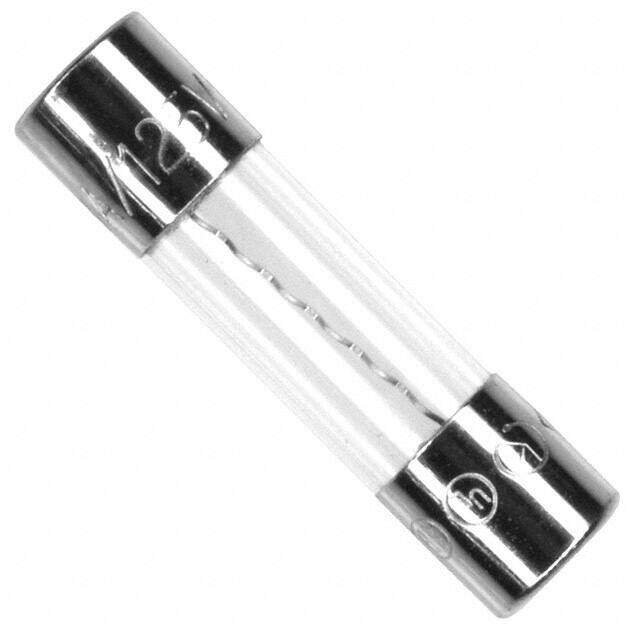

02323.15MXP
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description
FUSE GLASS 3.15A 250VAC 5X20MM
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.9768
≥1 USD $0.9768
≥10 USD $0.94336
≥100 USD $0.88264
≥500 USD $0.730576
≥1000 USD $0.608784
≥3000 USD $0.593613
Inventory: 250
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Holder
Package / Case 5mm x 20mm
Surface Mount NO
Terminal Shape END CAP
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 232
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Clip
ECCN Code EAR99
Resistance 21.5mOhm
Terminal Finish Nickel (Ni)
Voltage - Rated DC 250V
Current Rating 3.15A
Reference Standard CE; KC; PSE
Voltage - Rated AC 250V
Approval Agency CE, KC, PSE
Physical Dimension 5.2mm x 20mm
Power Dissipation 126mW
Response Time Medium Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 100A
Melting I2t 21.95
DC Cold Resistance 0.0215Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 21 J
Fuse Current 3.15A
Dimensions
Diameter 5.2mm
Body Height 20mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
