0215012.TXP
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description

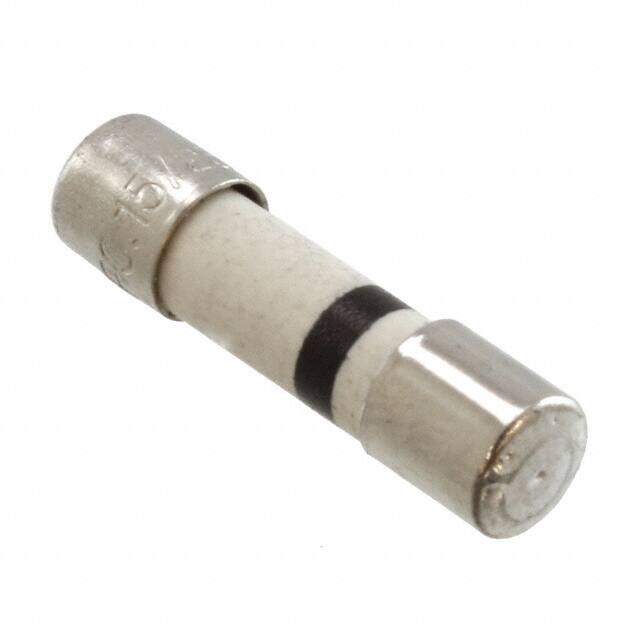

Cartridge Fuses 250V 12A SB HBC
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.4872
≥1 USD $1.4872
≥10 USD $1.4168
≥100 USD $1.34552
≥500 USD $1.086096
≥1000 USD $0.920832
≥3000 USD $0.897248
Inventory: 158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Holder
Package / Case 5mm x 20mm
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Body Material Ceramic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 215
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Clip
Resistance 6.1mOhm
Terminal Finish Matte Tin (Sn)
Voltage - Rated 250V
Additional Feature PRE ARCING TIME: OPEN WITHIN 0.01 SEC AT 1000% RATED CURRENT
Current Rating 12A
Reference Standard CE; CSA; CUL; PSE; SEMKO; UL; VDE
Voltage - Rated AC 250V
Approval Agency CE, CSA, PSE, SEMKO, UL, VDE
Physical Dimension 5.2mm x 20mm
Response Time Slow Blow
Fuse Type Cartridge, Ceramic
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 515.5
DC Cold Resistance 0.0061Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Joule Integral-Nom 515 J
Fuse Current 12A
Dimensions
Diameter 5mm
Body Height 20mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
