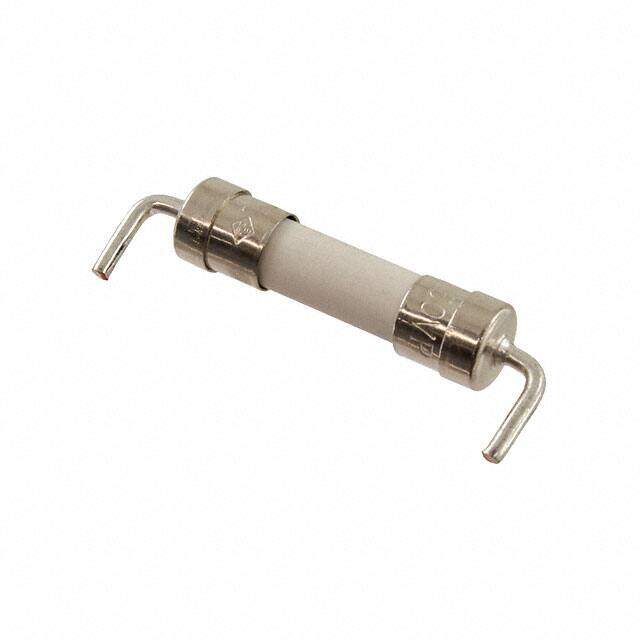

0215005.MXF162SPP
RoHS
RoHS compliant
RoHS compliantPackage Radial Bend Cylinder
Category Circuit Protection / Fuses
Description
FUSE CERAMIC 5A 250VAC 5X20MM
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.4312
≥1 USD $0.4312
≥10 USD $0.41536
≥100 USD $0.40216
≥500 USD $0.338272
≥1000 USD $0.280808
≥3000 USD $0.255306
Inventory: 601
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 19.9898mm
Technical
DC Cold Resistance 0.0153Ohms
Melting I2t 66.095
Breaking Capacity @ Rated Voltage 1.5kA
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Approval Agency CE, CQC, CSA, KC, PSE, UR, VDE
Voltage - Rated AC 250V
Current Rating 5A
Current Rating (Amps) 5A
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 15.3mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series 215SP
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Package / Case Radial Bend Cylinder
Mounting Type Through Hole
Mount Holder
Supply Chain
Factory Lead Time 15 Weeks
