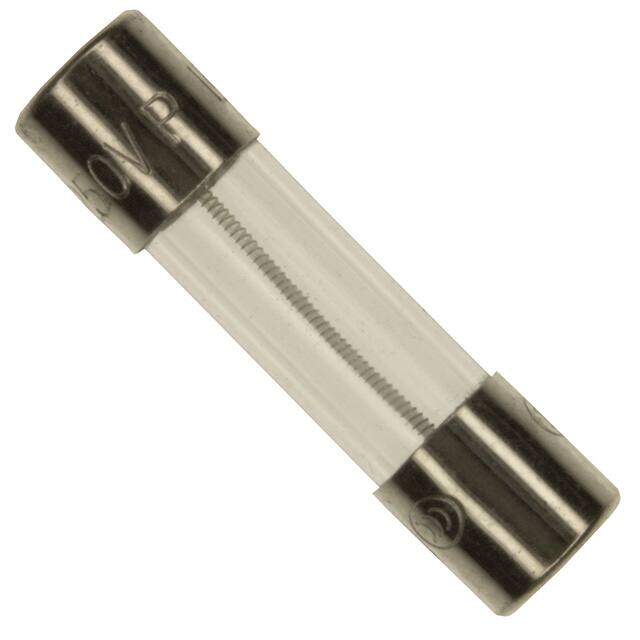

021302.5M
RoHS
/
Package 5mm x 20mm
Category Circuit Protection / Fuses
Description
FUSE GLASS 2.5A 250VAC 5X20MM
PDF
/
Inventory: 3199
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Holder
Package / Case 5mm x 20mm
Surface Mount NO
Terminal Shape PIN WIRE
Mounting Feature THROUGH HOLE
Body Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 213
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Clip
ECCN Code EAR99
Resistance 30mOhm
Terminal Finish Tin (Sn)
Voltage - Rated 250V
HTS Code 8536.10.00.40
Current Rating 2.5A
Reference Standard CCC; CE; CSA; IEC; PSE; SEMKO; UL; VDE
Voltage - Rated AC 250V
Approval Agency BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE
Physical Dimension 5.8mm x 22.5mm
Response Time Slow Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 35A
Melting I2t 138
DC Cold Resistance 0.0305Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Fuse Size 5x20mm
Joule Integral-Nom 138 J
Dimensions
Diameter 5mm
Compliance
RoHS Status Non-RoHS Compliant
