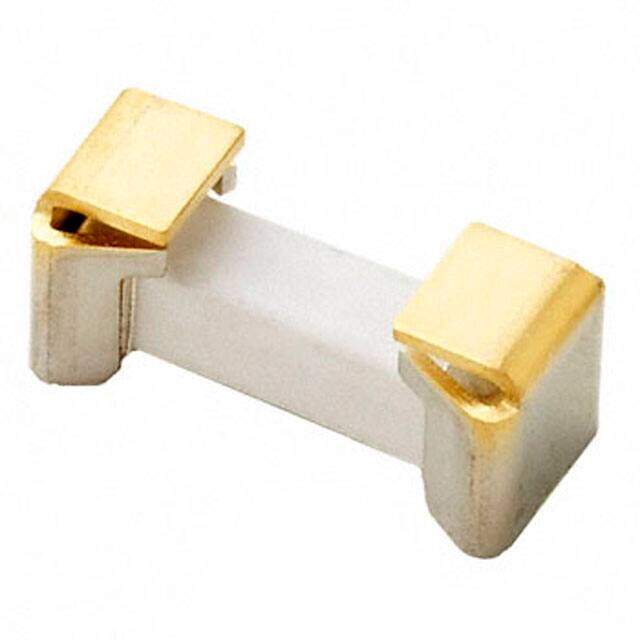

016003.5MR

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package 2-SMD, Square End Block with Clip
Category Circuit Protection / Fuses
Description FUSE BOARD MNT 3.5A 250VAC 2SMD
PDF
/
Inventory: 1576
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 4.8006mm
Length 10.8966mm
Height 4.8006mm

Technical

Fuse Current 3.5A
DC Cold Resistance 0.0199Ohms
Melting I2t 5934
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Approval Agency cULus
Voltage - Rated AC 250V
Current Rating 3.5A
Depth 4.8mm
Current Rating (Amps) 3.5A
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 19.9mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.429Lx0.189W x 0.189 H 10.90mmx4.80mmx4.80mm
Series NANO2? 160
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Housing Material Ceramic
Package / Case 2-SMD, Square End Block with Clip
Mounting Type Holder, Surface Mount
Mount Holder, Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
