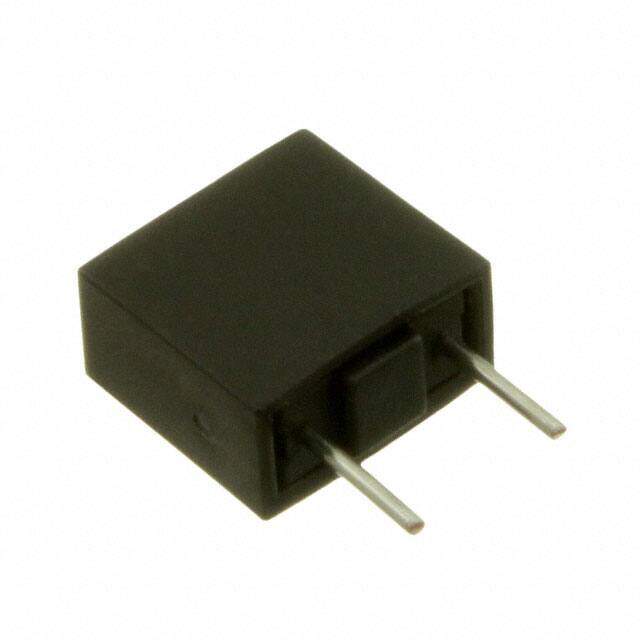

SS-5H-4A-BK
RoHS
/
Package Radial, Box
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) SS-5H RADIAL TD FUSE 250V 4A
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.55616
≥100 USD $0.53856
≥500 USD $0.453024
≥1000 USD $0.376112
≥3000 USD $0.341924
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Box
Number of Pins 2
Housing Material Plastic
Weight 453.59237mg
Body Material Plastic
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2011
Series SS-5H
Size / Dimension 0.335Lx0.170W x 0.337 H 8.50mmx4.30mmx8.55mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Resistance 12mOhm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated 300V
Current Rating (Amps) 4A
Depth 4.3mm
Current Rating 4A
Voltage - Rated AC 300V
Approval Agency CQC, cURus, KC, PSE, TUV, VDE
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 100A
Wire/Cable Diameter 600 μm
Melting I2t 87
DC Cold Resistance 12mOhms
Fuse Current 4A
Dimensions
Height 4.3mm
Length 8.5mm
Width 4.318mm
Compliance
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
