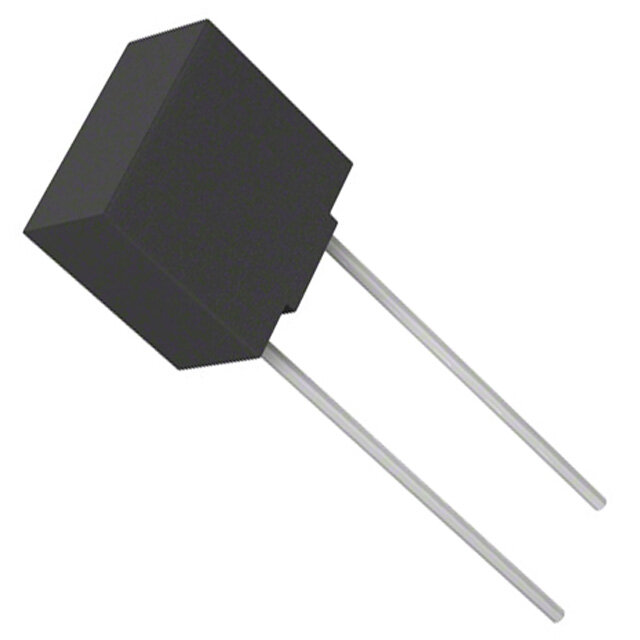

SS-5H-1.25A-AP
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) SS-5H RADIAL TD FUSE 250V 1.25A
PDF
/
Inventory: 7940
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4.2926mm
Length 8.5mm
Height 4.3mm
Technical
DC Cold Resistance 57Ohms
Melting I2t 12.75
Breaking Capacity @ Rated Voltage 100A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Approval Agency CQC, cURus, KC, PSE, TUV, VDE
Voltage - Rated AC 250V
Current Rating 1.25A
Depth 4.3mm
Current Rating (Amps) 1.25A
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 57mOhm
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.335Lx0.169W x 0.329 H 8.50mmx4.30mmx8.35mm
Series SS-5H
Packaging Tape & Box (TB)
Operating Temperature -40°C~125°C
Physical
Housing Material Plastic
Number of Pins 2
Package / Case Radial, Box
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
