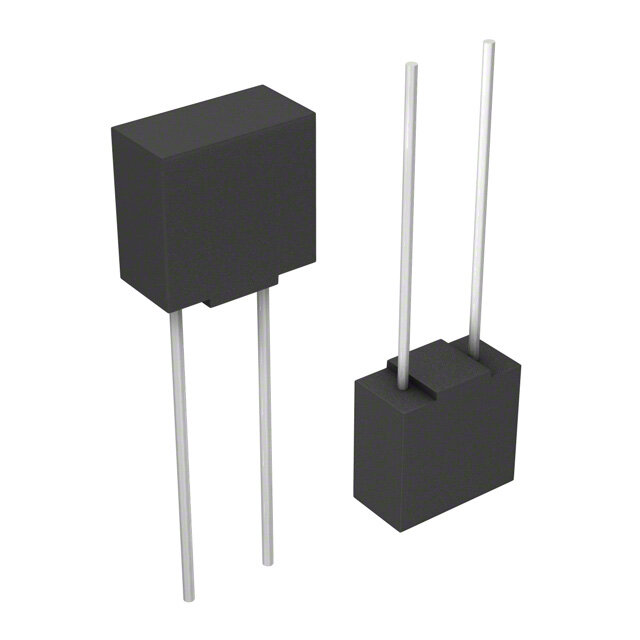

SS-5F-5A-AP
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
FUSE BOARD MOUNT 5A 250VAC RAD
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.857358
≥1 USD $0.857358
≥10 USD $0.81224
≥100 USD $0.782153
≥500 USD $0.752066
Inventory: 1111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Box
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Box (TB)
Published 2014
Series SS-5F
Size / Dimension 0.335Lx0.169W x 0.329 H 8.50mmx4.30mmx8.35mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Current Rating (Amps) 5A
Voltage - Rated AC 250V
Approval Agency cULus, PSE
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 53.6831
DC Cold Resistance 0.016Ohms
Compliance
RoHS Status RoHS Compliant
